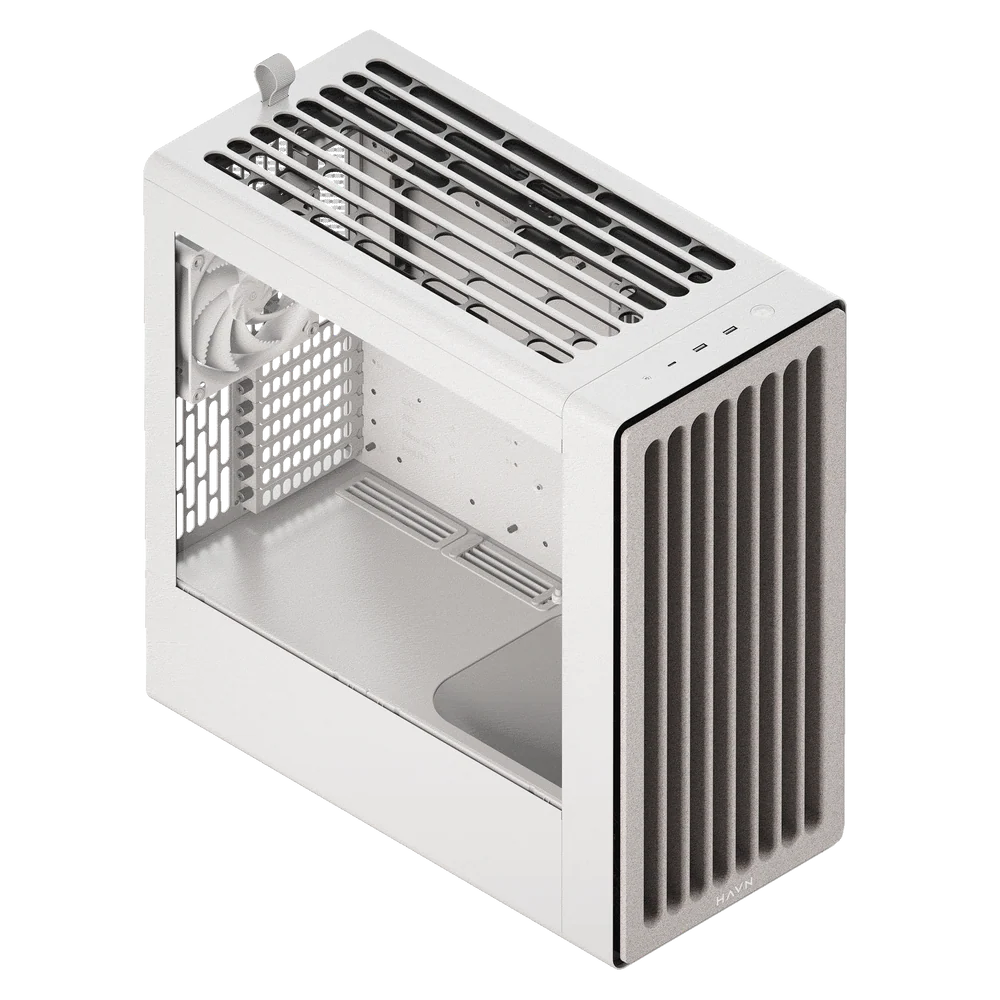

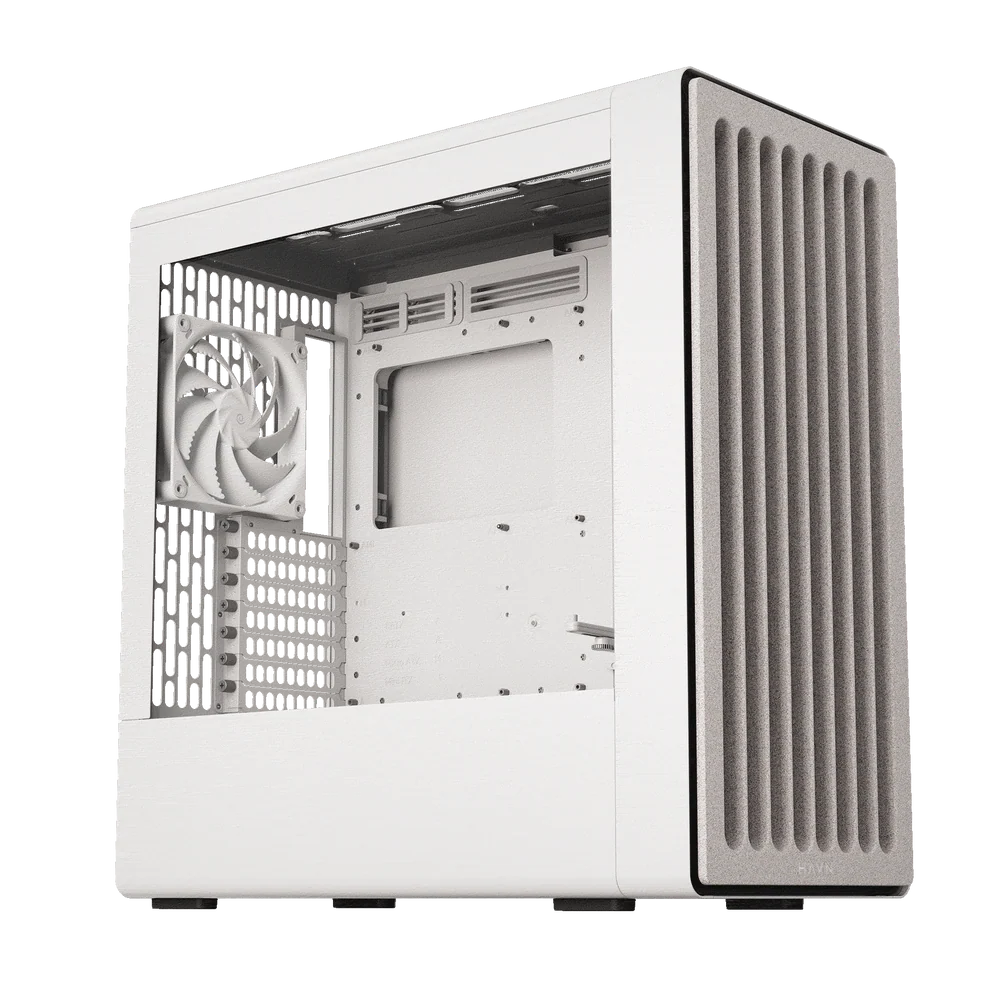

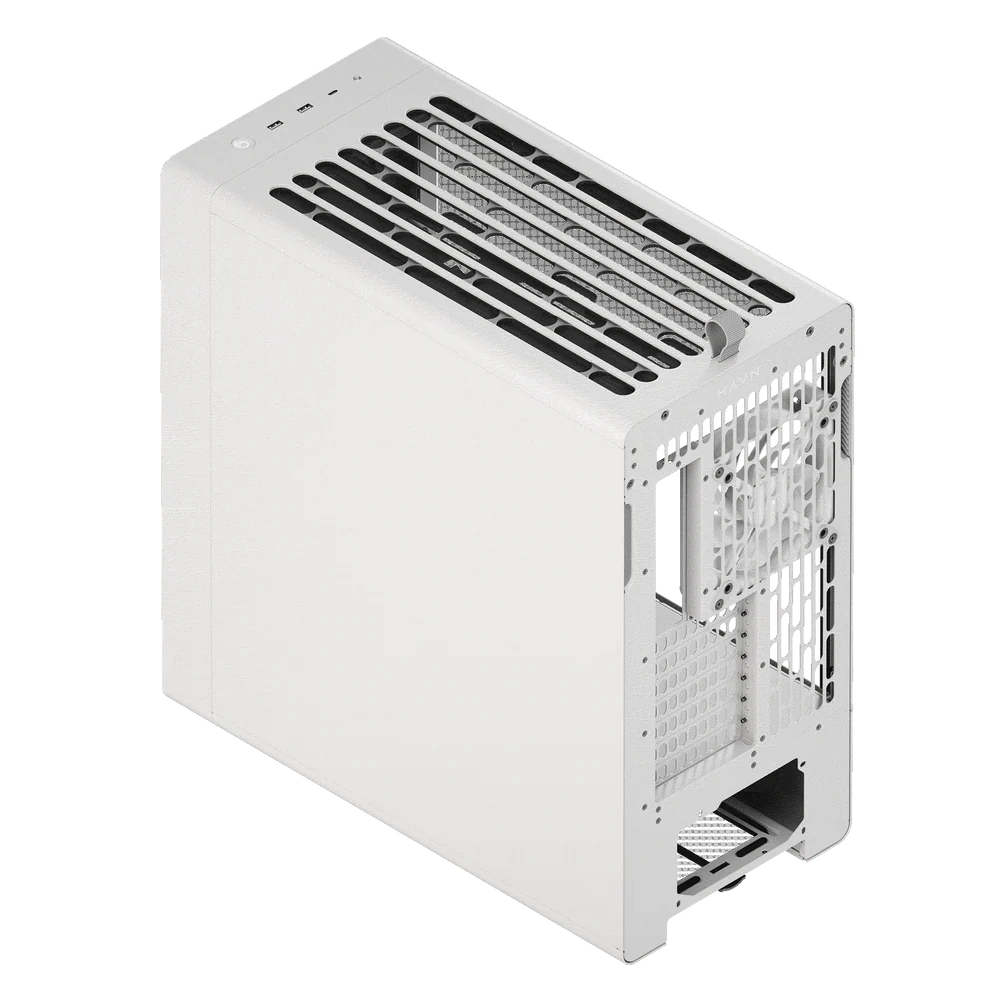

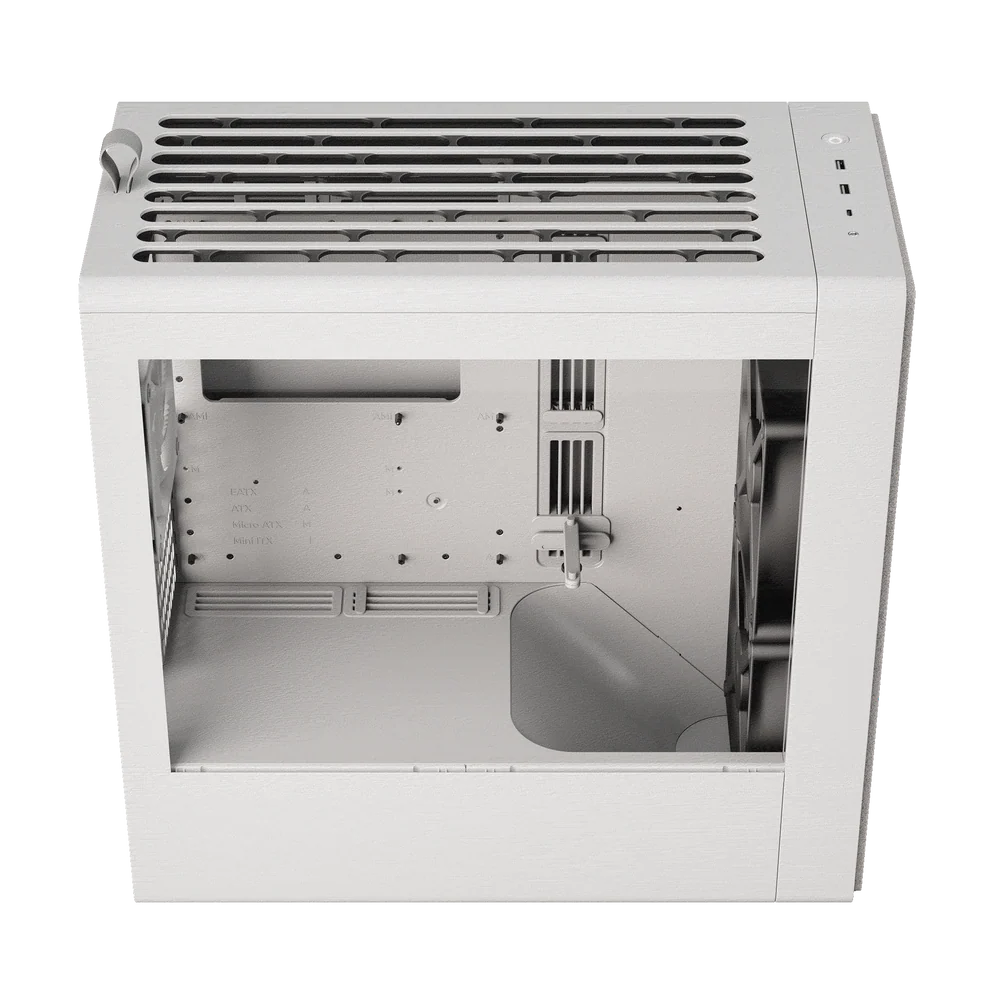

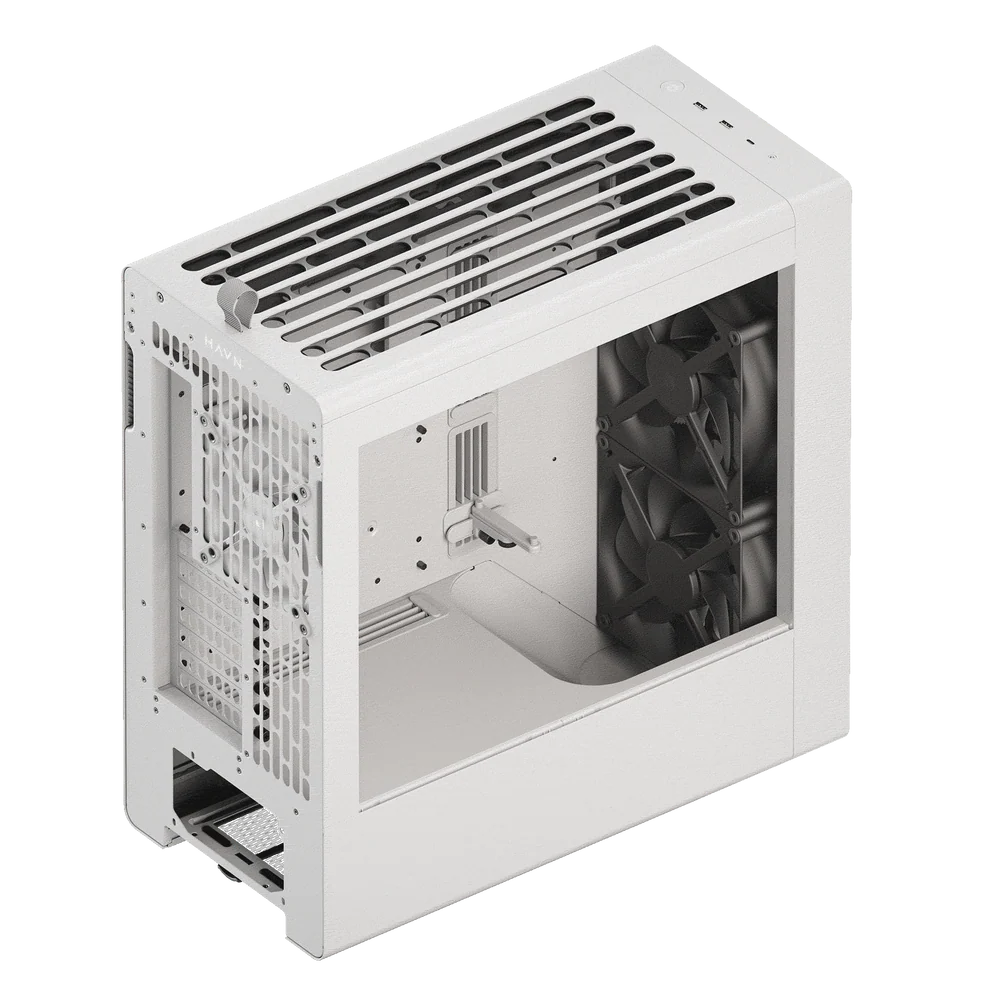

HAVN BF 360 Flow Chassis - White Edition

SKU: HVN-CA-BF360-03

EAN : 4251442513641

• High-airflow ATX mid-tower with GPU-focused air guide ramp and dual 180mm fans.
• Ultra-quiet operation with premium FDB bearings and vibration isolation.
• Minimalistic stone-textured front panel with SimpliCable routing system for a cleaner build.

GPU-Focused Air Guide Ramp

Channels airflow directly to graphics card intake.

Semi-Open Frame Access

Easier upgrades and improved cooling efficiency.

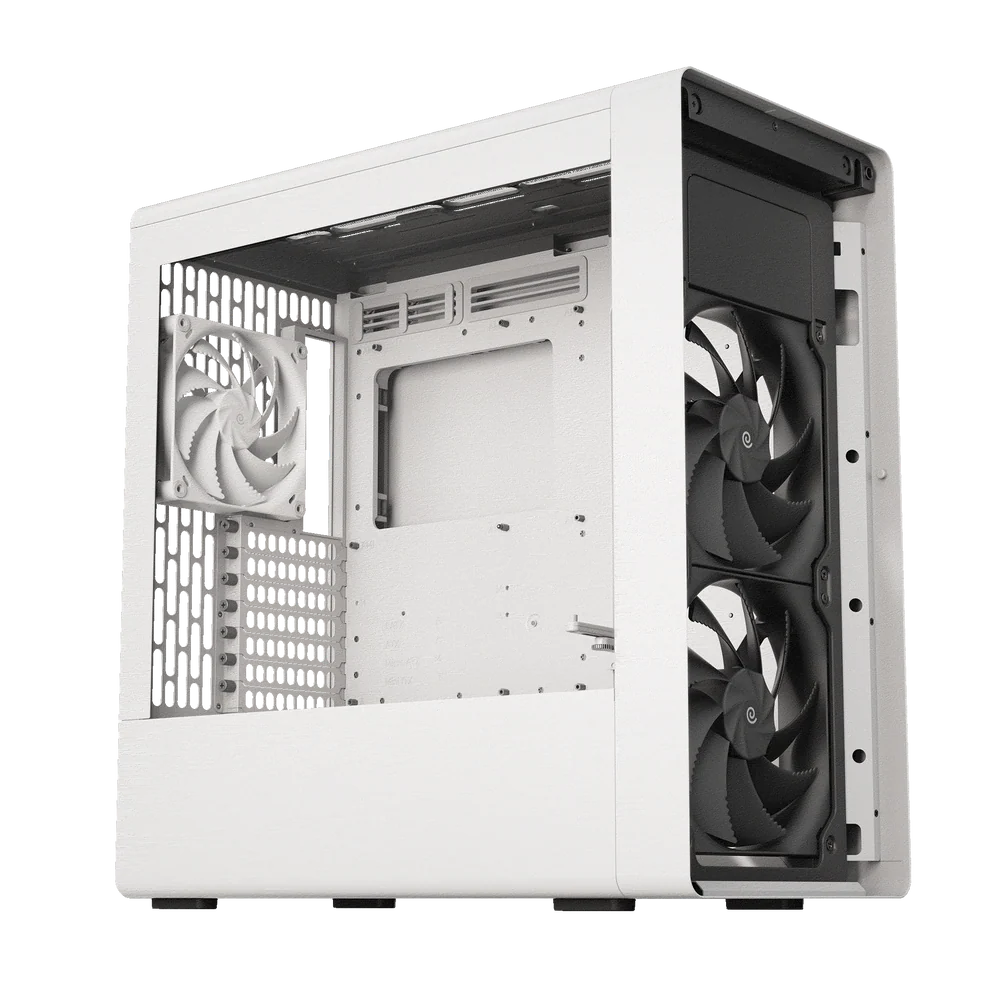

Dual 180mm H18 Fans

Maximum airflow capacity for high-end GPUs.

Triple-Groove FDB Bearings

Long-lasting, whisper-quiet fan operation.

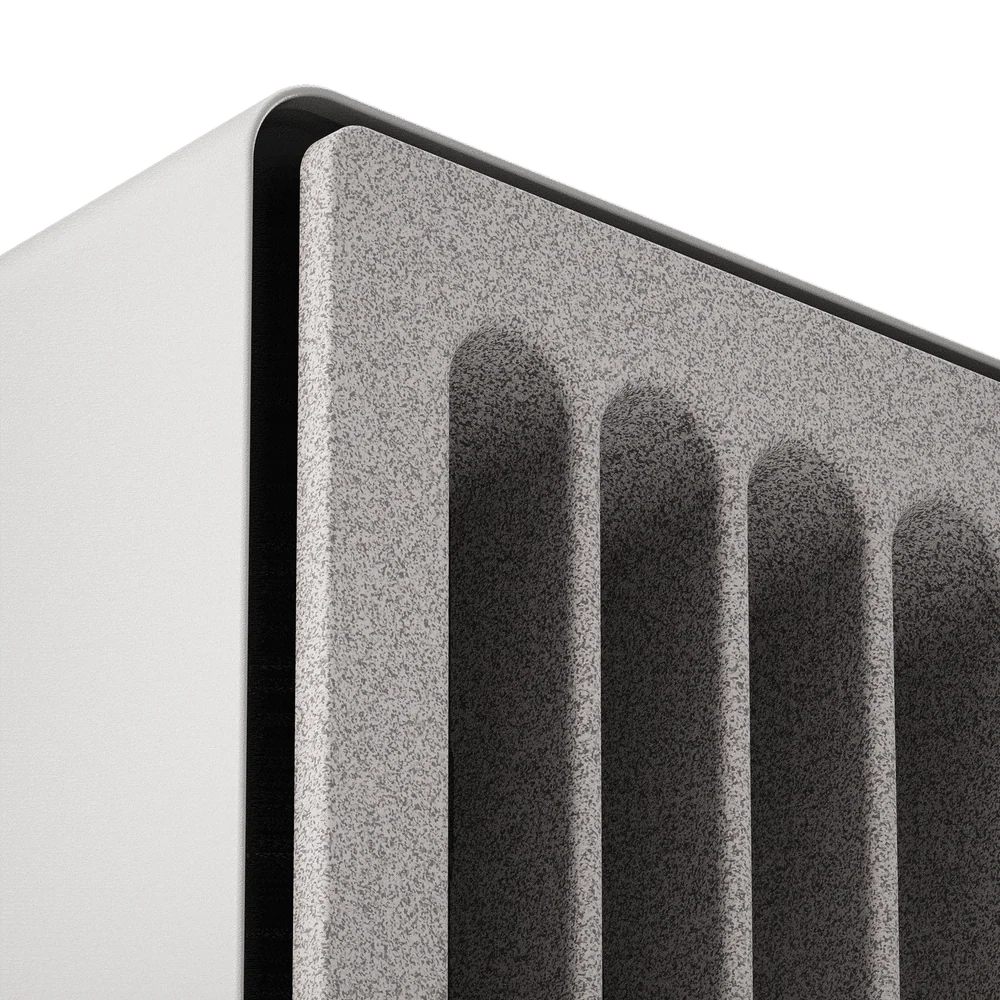

Stone-Textured Front Panel

Minimalistic stone-textured finish for premium aesthetic.

Precision Aerodynamic Design

Optimized airflow delivers efficient GPU cooling.

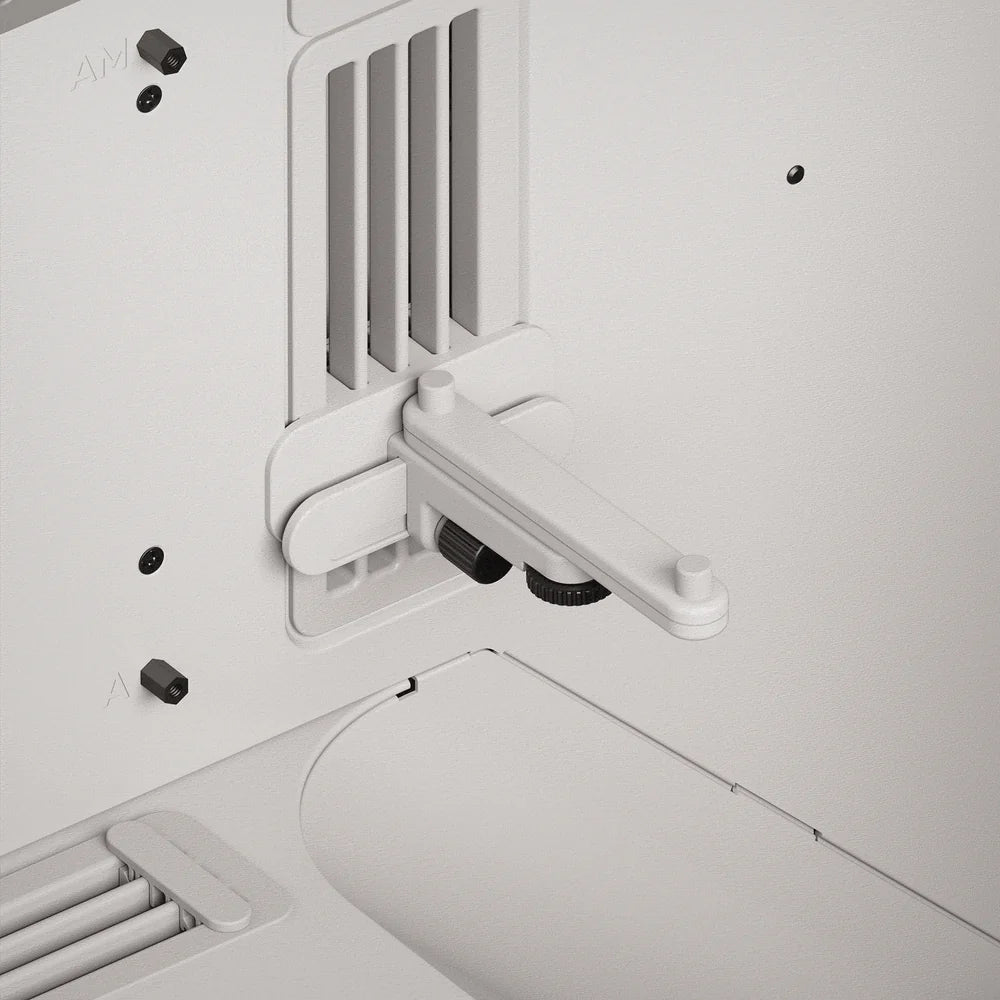

Highly Adjustable GPU Support

Neatly hidden bracket stabilizes heavy GPUs.

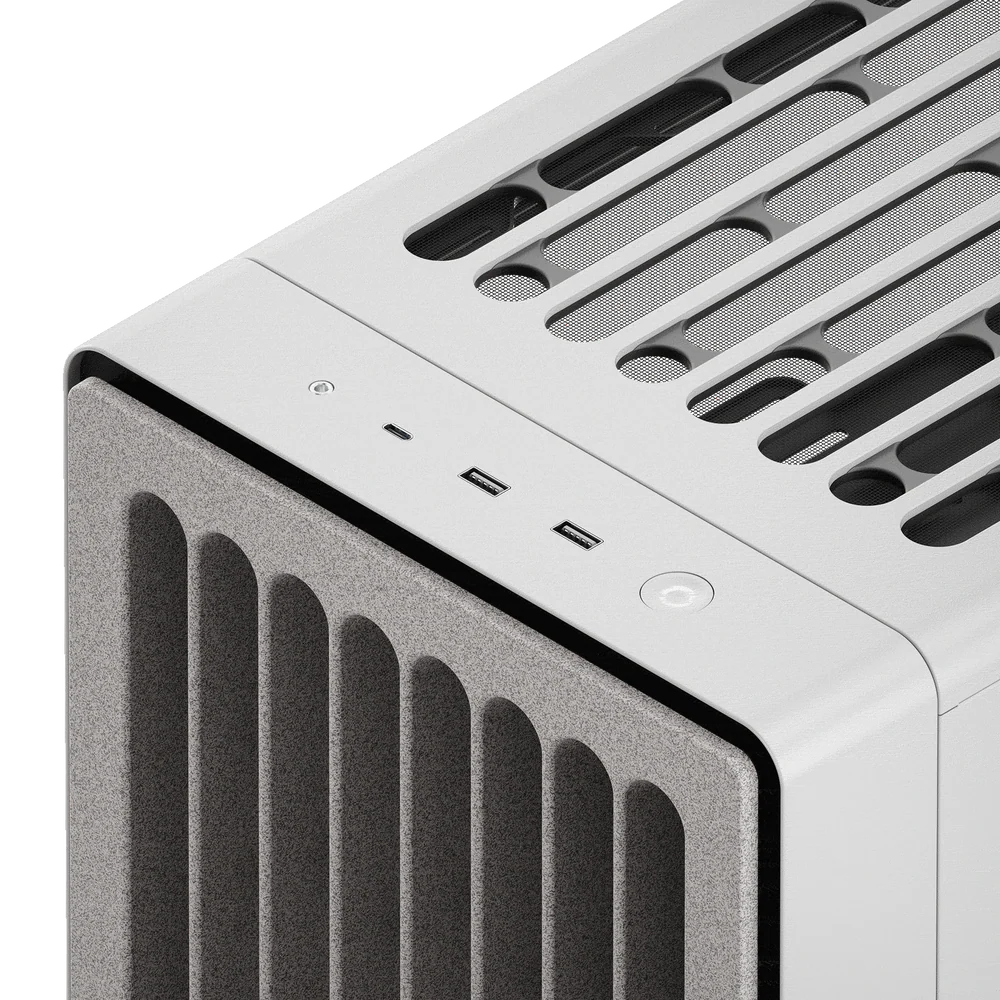

Front I/O

USB 3.2 Gen 2 Type-C x1

USB 3.2 Gen 1 Type-A x2

Audio Jack x1

Power & Reset Button x1

Motherboard Support

E-ATX* / ATX / Micro-ATX / ITX
*To install an E-ATX motherboard, the built-in GPU support bracket must be removed.

Expansion Slots

7

Fan Support

Maximum Amount: 6

Top: 2 x 180 mm / 2 x 140 mm / 3 x 120 mm
Front: 2 x 180 mm

Left: N/A

Right: N/A

Bottom: N/A

Rear: 1 x 140 / 1 x 120 mm

Fan PWM Repeater

Fan Ports: 1 x PWM repeaters, 6 ports total

Location: 1 x Cable Management Tray

Fan Connectors: 6 ports per repeater x 4-pin PWM
(Connect your primary fan to the white port to control PWM signal.
All other ports mirror the white port's signal.)

Fan Rated Voltage: 12V

Fan Safety Current: Up to 2.6A across 6 ports

Power Connector: 1 x SATA Power

Power Safety Current: 1 x SATA connector power input, 12V → 2.6A (max)

CPU Tower Cooler Clearance

Height: Up to 195 mm.

Liquid Cooling Support

Top: 240 / 280 / 360 mm

Front: N/A

Left: N/A

Right: N/A

Bottom: N/A
AIO Thickness Support: Up to 60mm

Graphics Card Clearance

Length: Up to 410 mm

Width: Up to 195 mm.

GPU Support

1 - 4.5 Slots

RAM Clearance

If the radiator & fans thickness is greater than 80 mm: 280 mm - 40 mm / 360 mm - 60 mm

Power Supply Support

ATX

Length: Up to 200mm (Clearance - 260mm)

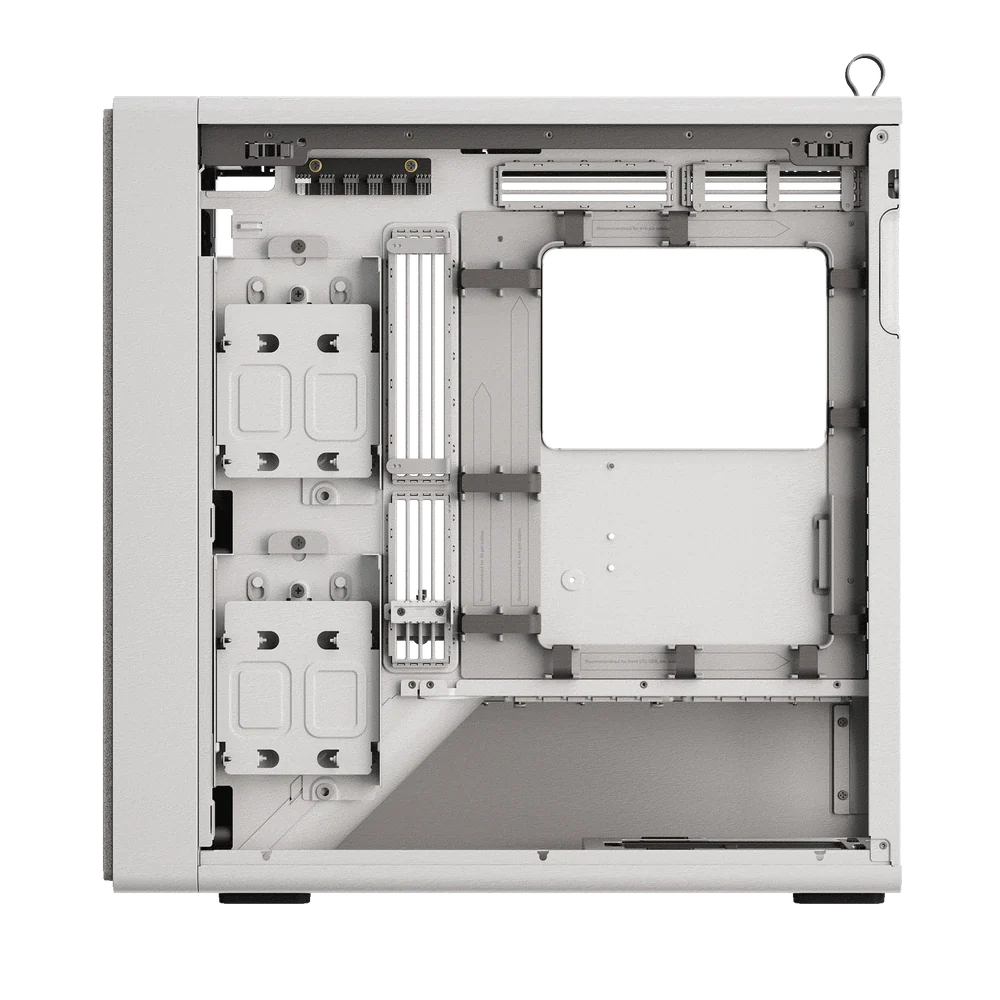

Storage

Right Mount: 2 Storage Bays: 2 x 3.5'' / 4 x 2.5''

Cable Management Tray: 1 Storage Bay: 1 x 3.5'' / 2 x 2.5''

Storage Bays Included: 2 x (2 x 3.5" / 4 x 2.5")

Dust Filter

Front: 1 (Built-in)

Top: 1 (Built-in)

Rear Bottom: 1 (Removable)

Pre-installed Fans

2x H18 Fan (Front) - Case Version
1x H14 Fan (Rear) - Case Version

Form Factor

Mid Tower

Material

SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets

PC Case Dimensions (L x W x H)

515 x 254 x 522.6 mm

Net Weight

14.79 kg

Warranty

1 year
