HAVN HS 420 DOOM: The Dark Ages Limited Edition

SKU: HVN-CA-HS420-05-DOOM

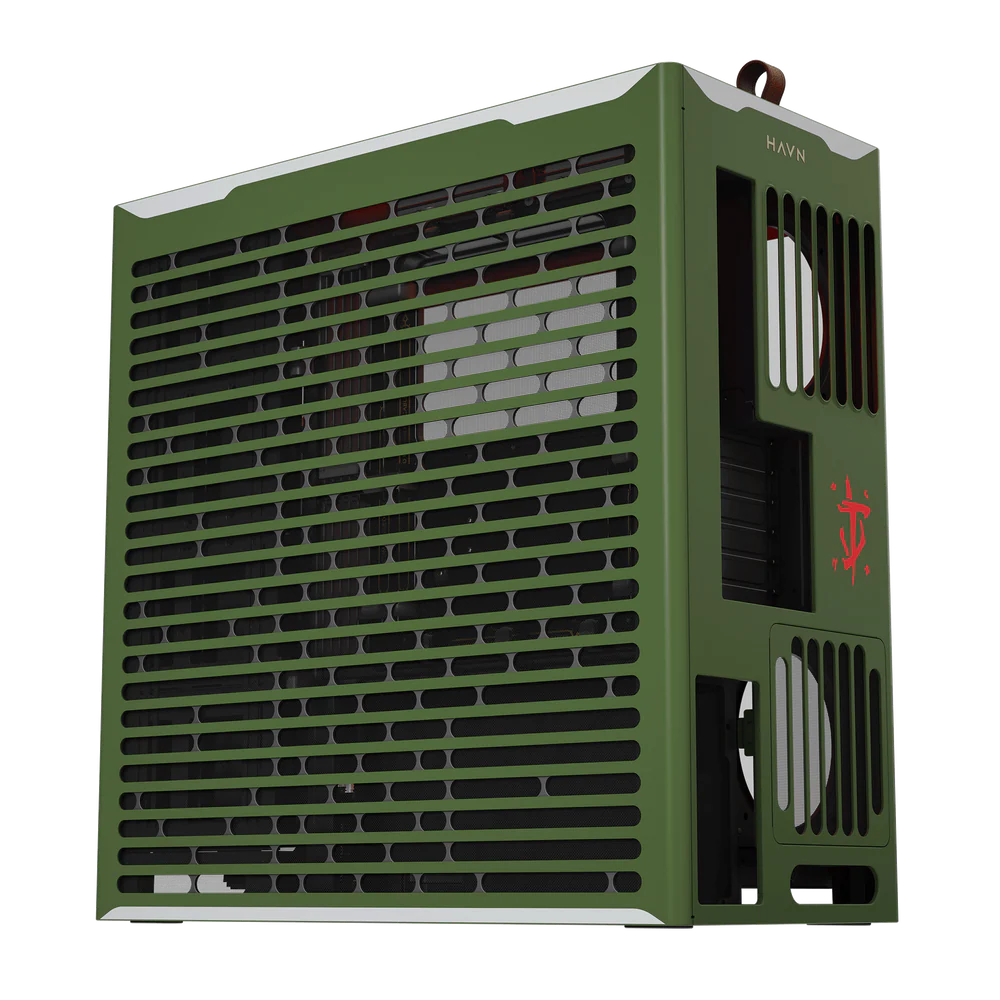

Stand And Fight, Slayer. The HAVN HS 420 DOOM: The Dark Ages Edition is the ultimate PC case for Slayers. This mid-tower case is colored to match the DOOM Slayer’s armor and adorned with multi-layer, screen-printed sigils and runes. To complete the look, there is an LED strip illuminated like the Praetor Suit power node and a magnetic skull accessory. Beneath its striking gothic aesthetic lies the signature HS 420 Hybrid Structure, a dual-chamber design engineered for optimized GPU airflow and cooling. This PC case isn’t just about style: it’s a must-have showcase piece for DOOM fans.

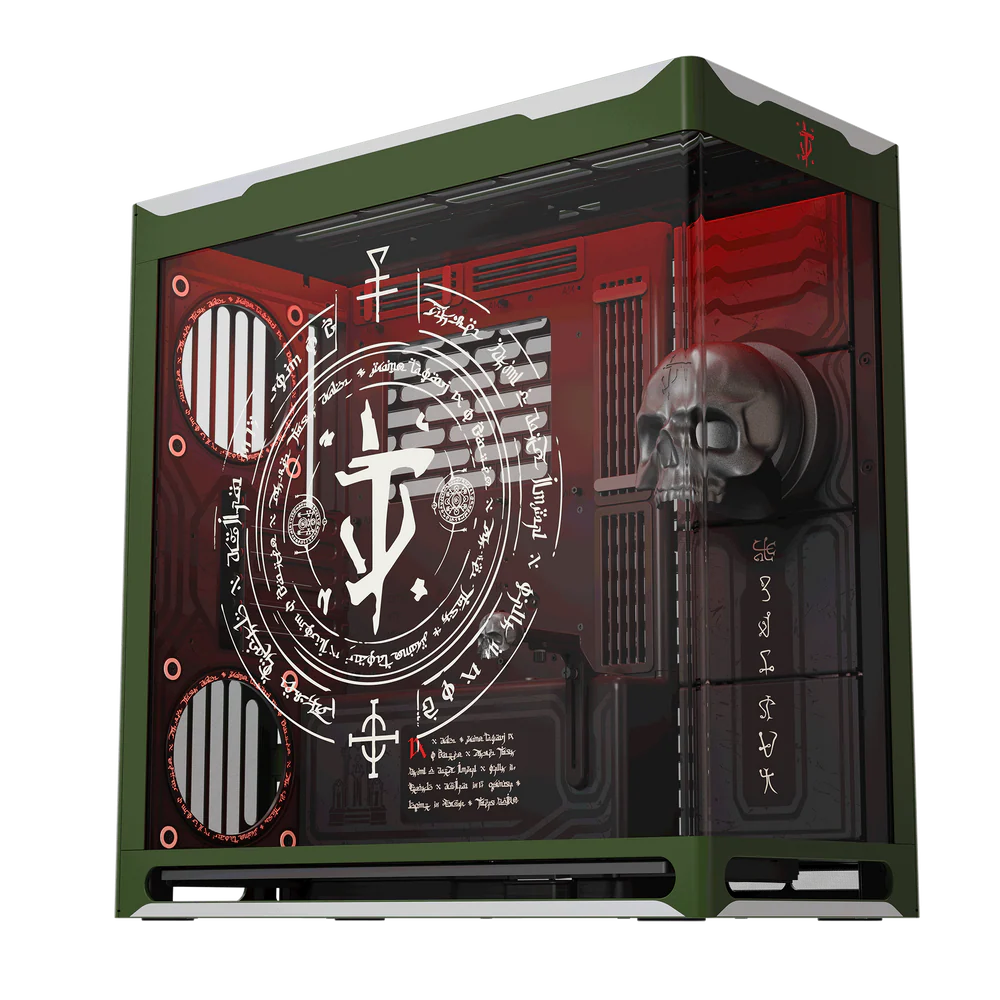

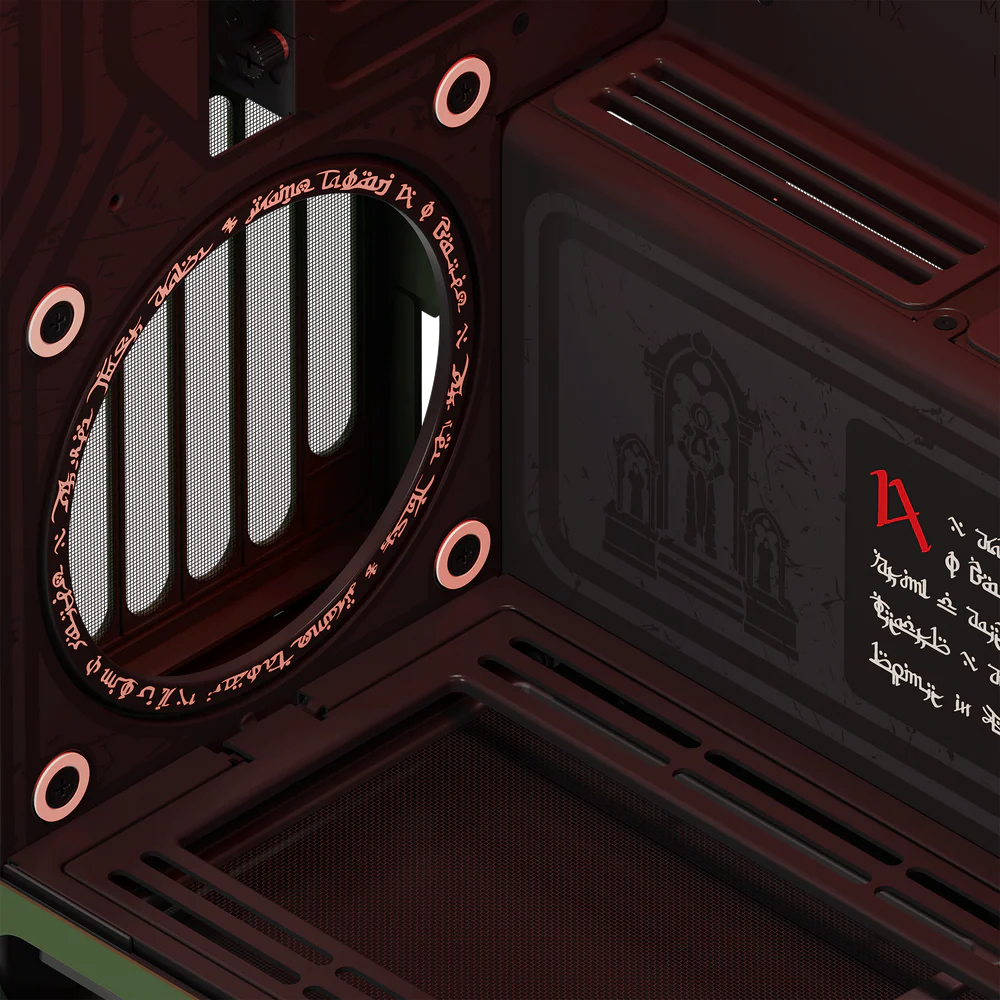

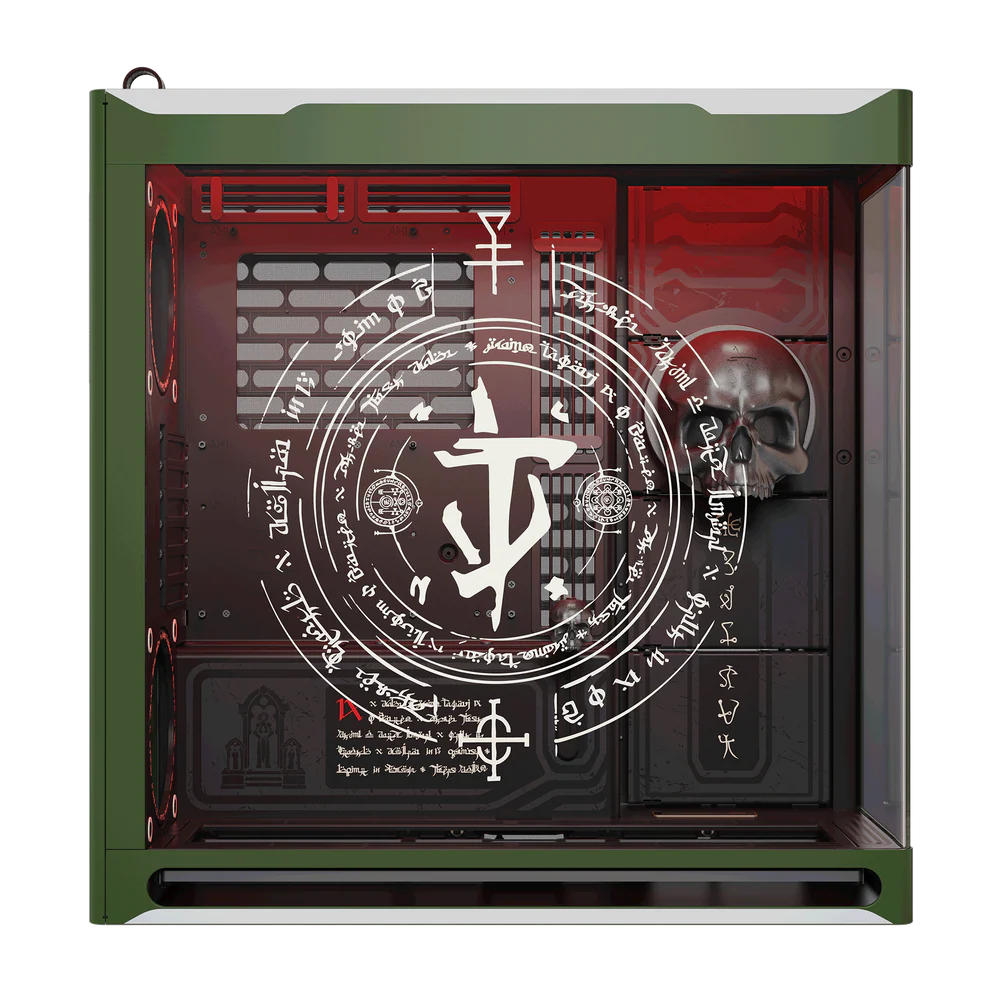

• Multi-layer DOOM printing: The exterior is a striking DOOM Slayer green that’s accented with metallic details, evoking the Praetor Suit armor, while the UniSheet tempered glass panel and interior surfaces feature multi-layer, screen-printed white sigils and runes.

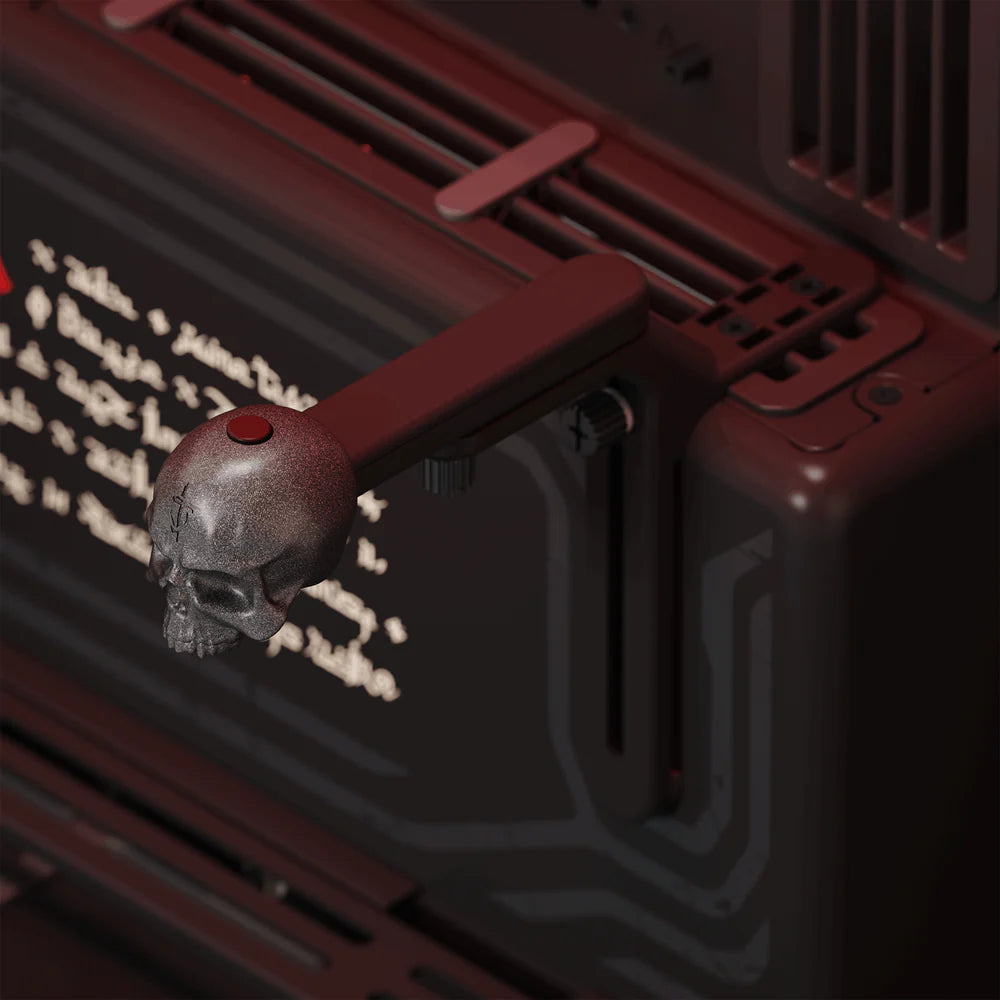

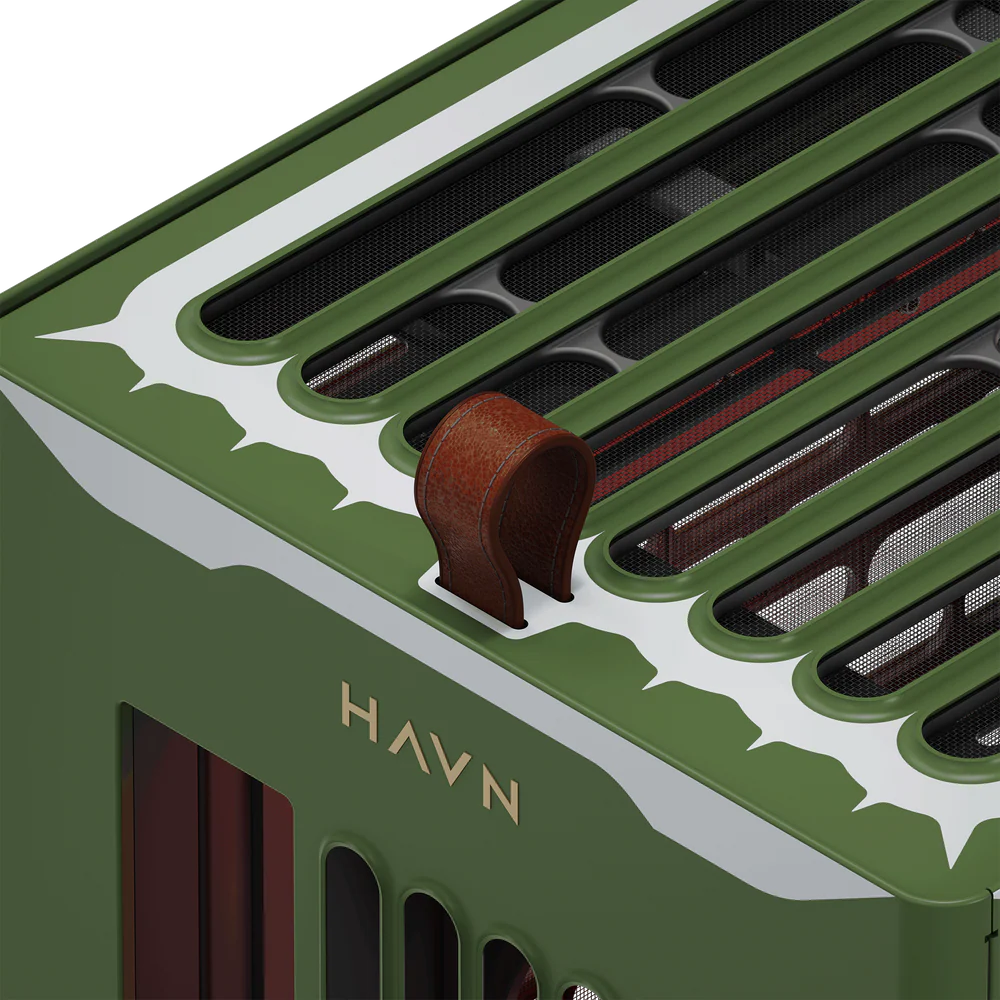

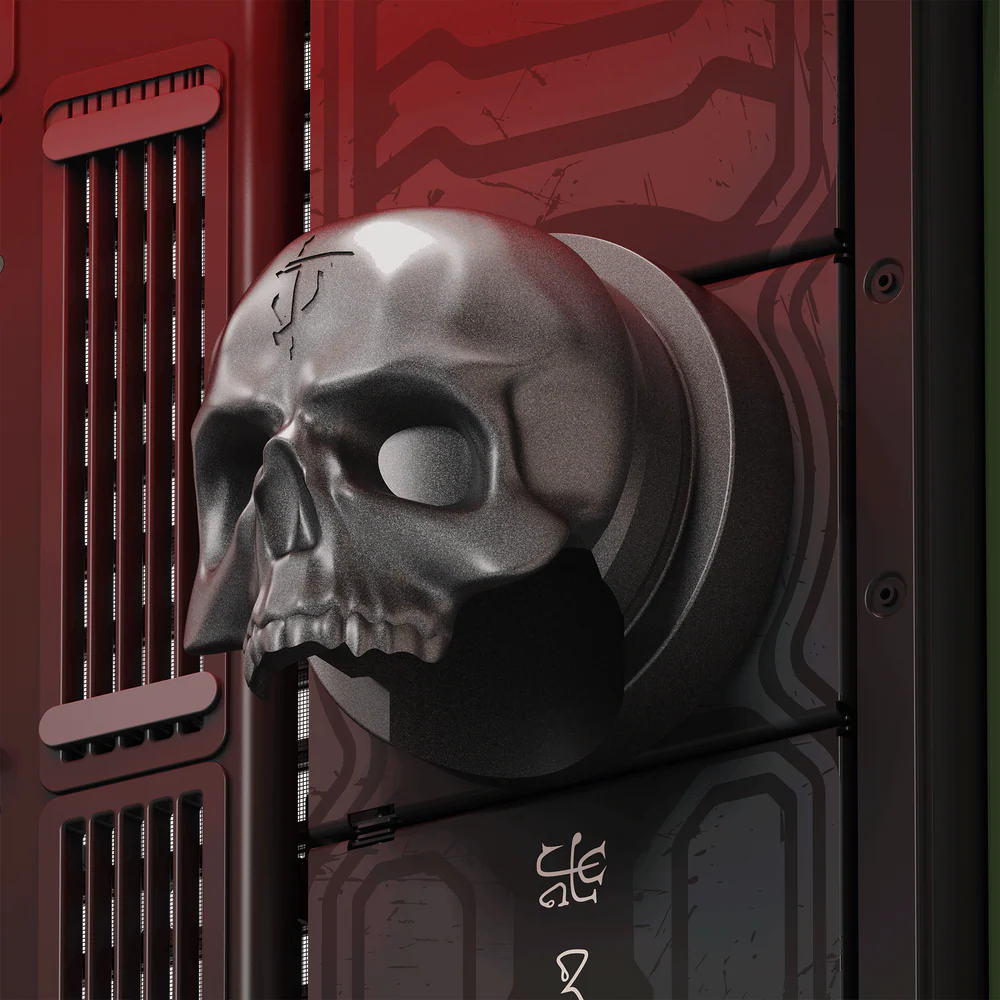

• Exclusive magnetic DOOM skull accessory: A stylized magnetic metal skull. Position the large skull inside the case to cover a cooling reservoir, or mount it outside as a brutal headphone hanger. Your trophy, your way.

• Customizable DOOM-inspired RGB lighting: Includes an RGB LED strip for personalizing your rig. Set it to crimson to echo DOOM’s infernal atmosphere, or customize the hue to match your style.

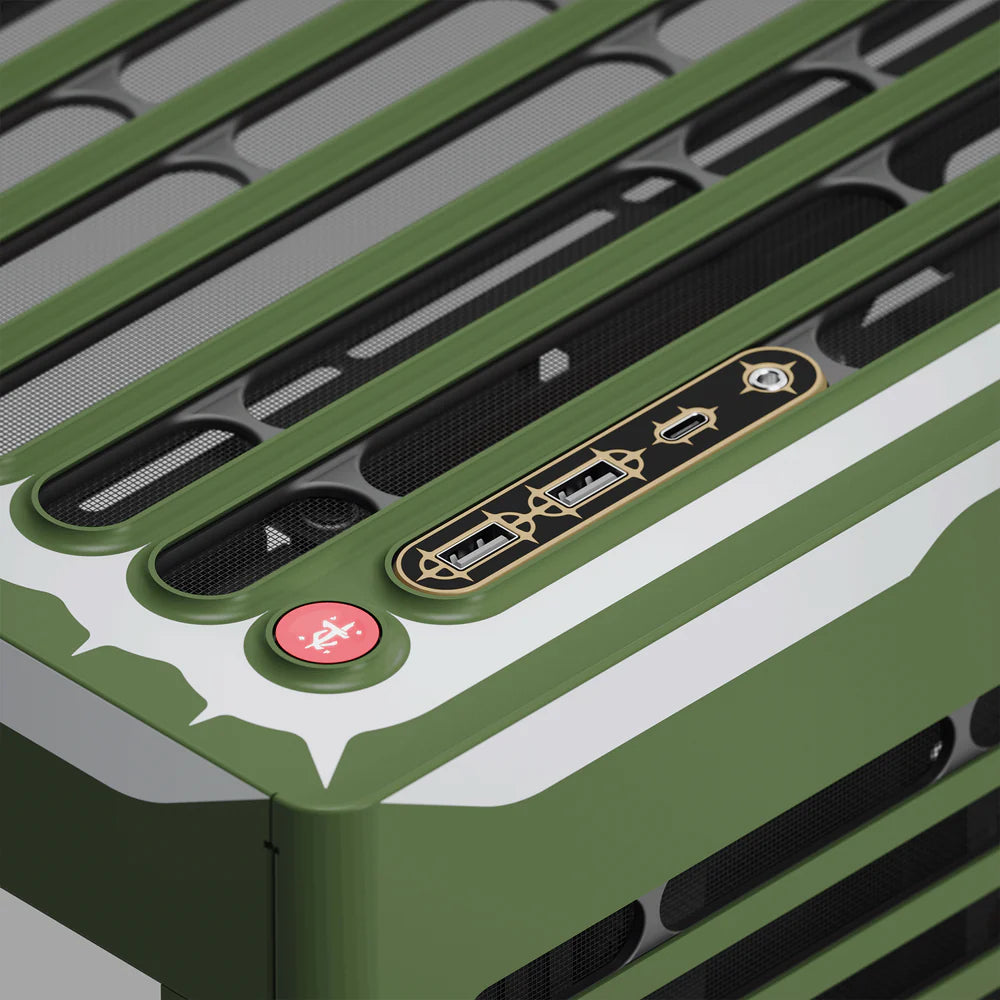

Front I/O

USB 3.2 Gen 2 Type-C x1

USB 3.2 Gen 1 Type-A x2

Audio Jack x1

Power & Reset Button x1

Motherboard Support

E-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITX

Expansion Slots

6

Fan Support

Maximum Amount: 11

Top: 3 x 120 / 3 x 140 mm

Right: 3 x 120 / 3 x 140 mm

Bottom: 3 x 120 / 3 x 140 mm

Rear: 2 x 120 / 2 x 140 mm (Thickness Up to 30 mm)

Fan PWM Repeater

Fan Ports: 2 x PWM repeaters, 12 ports total

Location: 1 x Cable Management Tray
1 x PSU Shroud

Fan Connectors: 6 ports per repeater x 4-pin PWM

(Connect your primary fan to the white port to control PWM signal.
All other ports mirror the white port's signal.)

Fan Rated Voltage: 12V

Fan Safety Current: Up to 2.6A across 6 ports

Power Connector: 1 x SATA Power

Power Safety Current: 1 x SATA connector power input, 12V → 2.6A (max)

CPU Tower Cooler Clearance

Height: Up to 185 mm. Tower cooler size depends on GPU width. CPU center to graphics card PCIe edge connector; ~199mm (varies by motherboard). Liquid cooling recommended.

Liquid Cooling Support

Top: 280 / 360 / 420 mm (Thickness: 65 mm, not overlapping with RAM)

Right: 280 / 360 / 420 mm (Thickness: 60 mm w/ GPU >317mm, 80 mm w/ top AIO)

Bottom: 280 / 360 / 420 mm (Thickness: 120 mm)

Graphics Card Clearance

Length: Up to 480 mm

Width: Up to 195 mm. GPU width support depends on CPU cooler size. CPU center to graphics card PCIe edge connector: ~199mm (varies by motherboard). Liquid cooling recommended.

GPU Support

2 - 5 Slots

RAM Clearance

If the fan and radiator thickness is greater than 65 mm: 420 mm - 32 mm / 360 mm - 43 mm

Power Supply Support

ATX

Length: Up to 220mm (Clearance - 290mm)

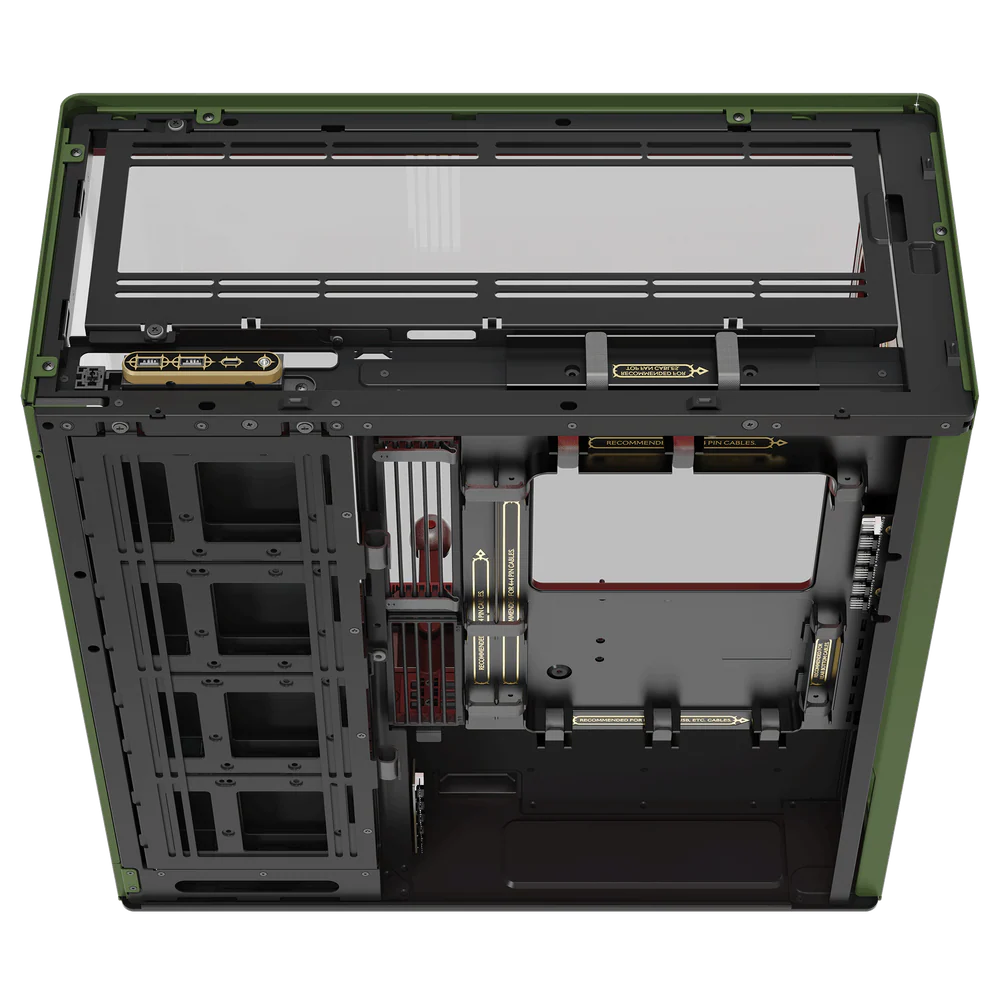

Storage

Right Fan Mount: 4 Storage Bays: 4 x 3.5'' / 8 x 2.5''

Cable Management Tray: 1 Storage Bay: 1 x 3.5'' / 2 x 2.5''

Storage Bay Included: 4x

Internal Display Support

VESA Mounting: 75 x 75 mm / 100 x 100 mm

Display Size: 14 in. (Max)

Location: Front Right Pillar

Dust Filter

Bottom: 1 (Removable)

Top: 1 (Built-in)

Right: 1 (Built-in)

Rear Bottom: 1 (Removable)

Accessories

Controllable RGB Light Strip - Top: 1 (Built-in)
Magnetic Skull - Side: 1 (Removable)
Aluminium Plate - Bottom: 1 (Built-in)
