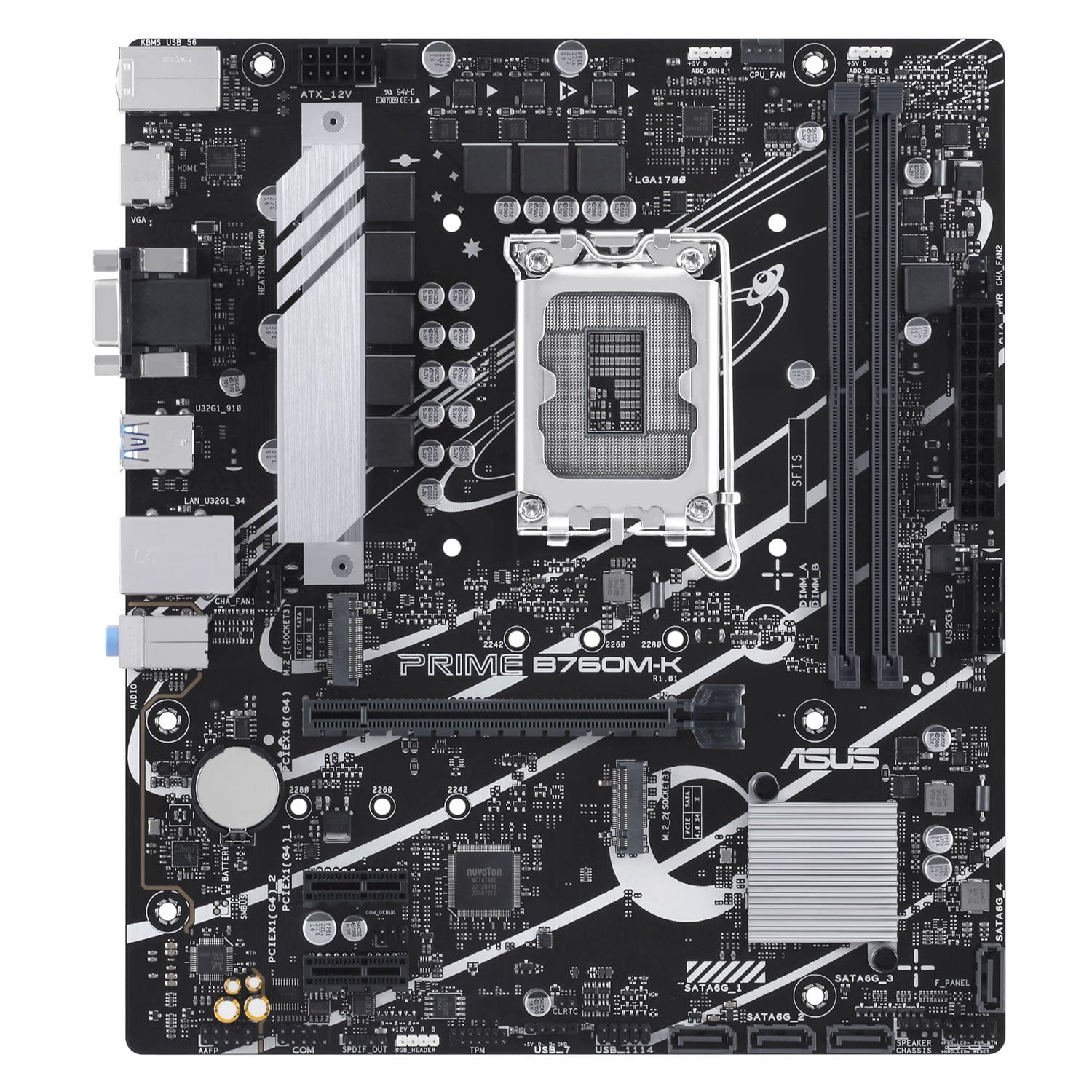

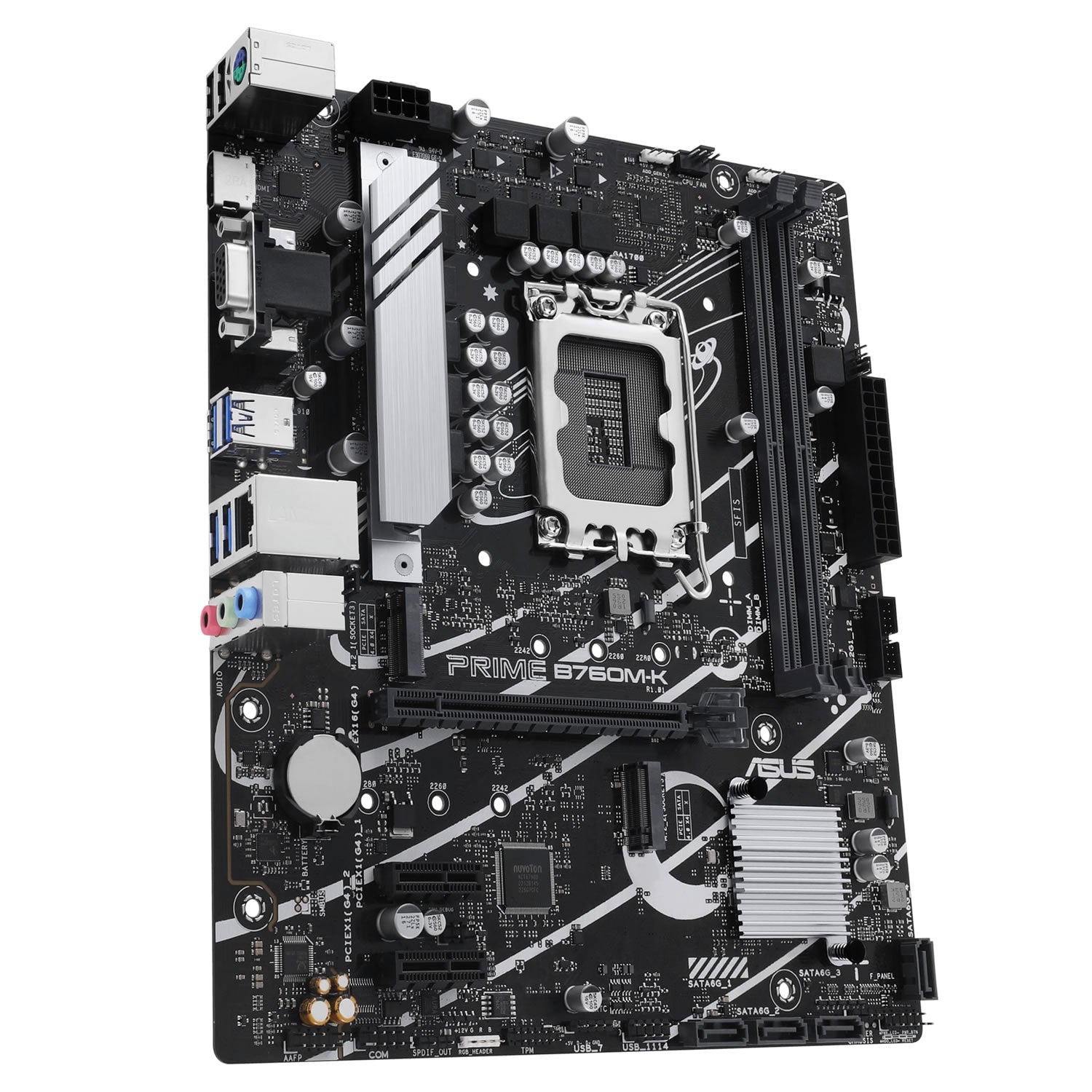

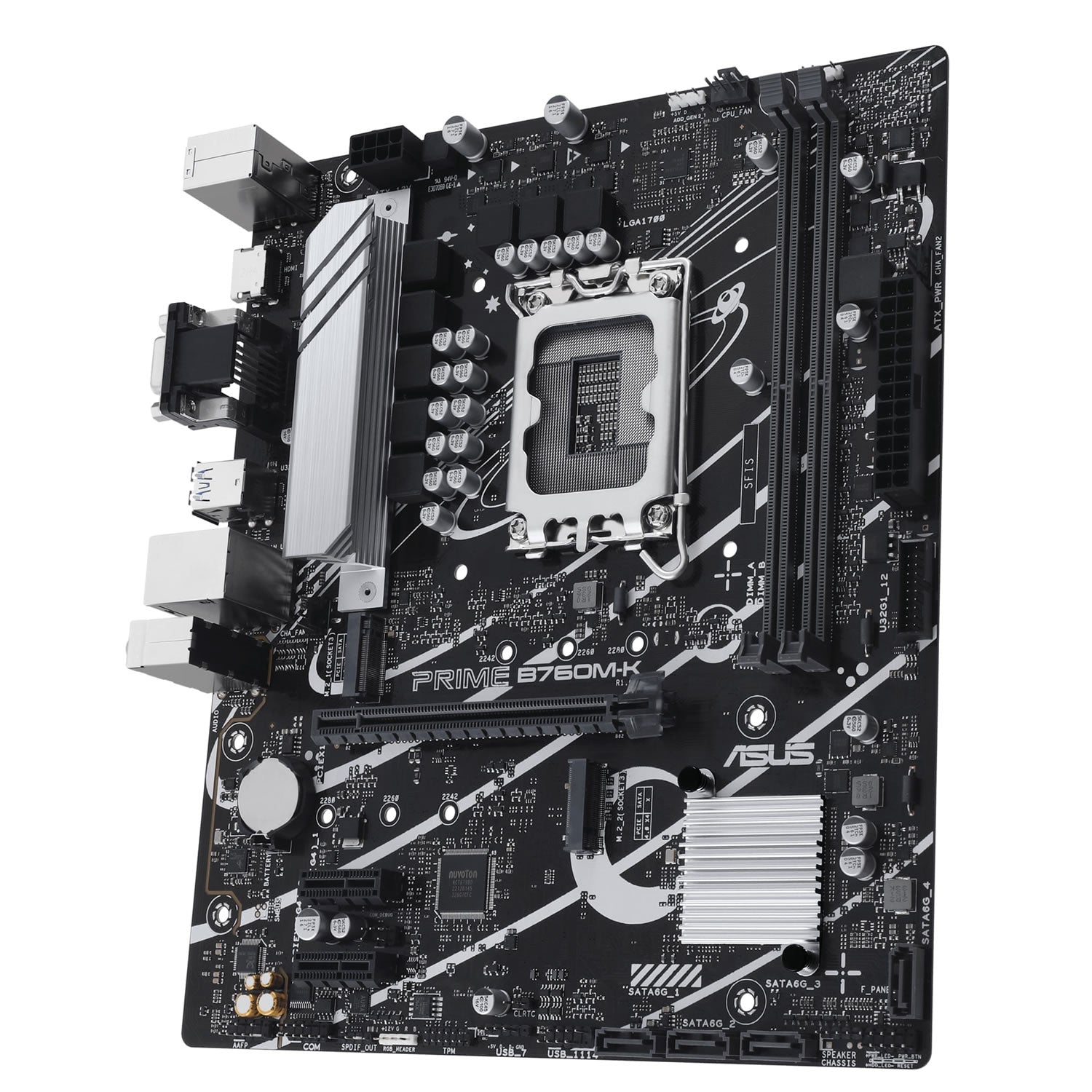

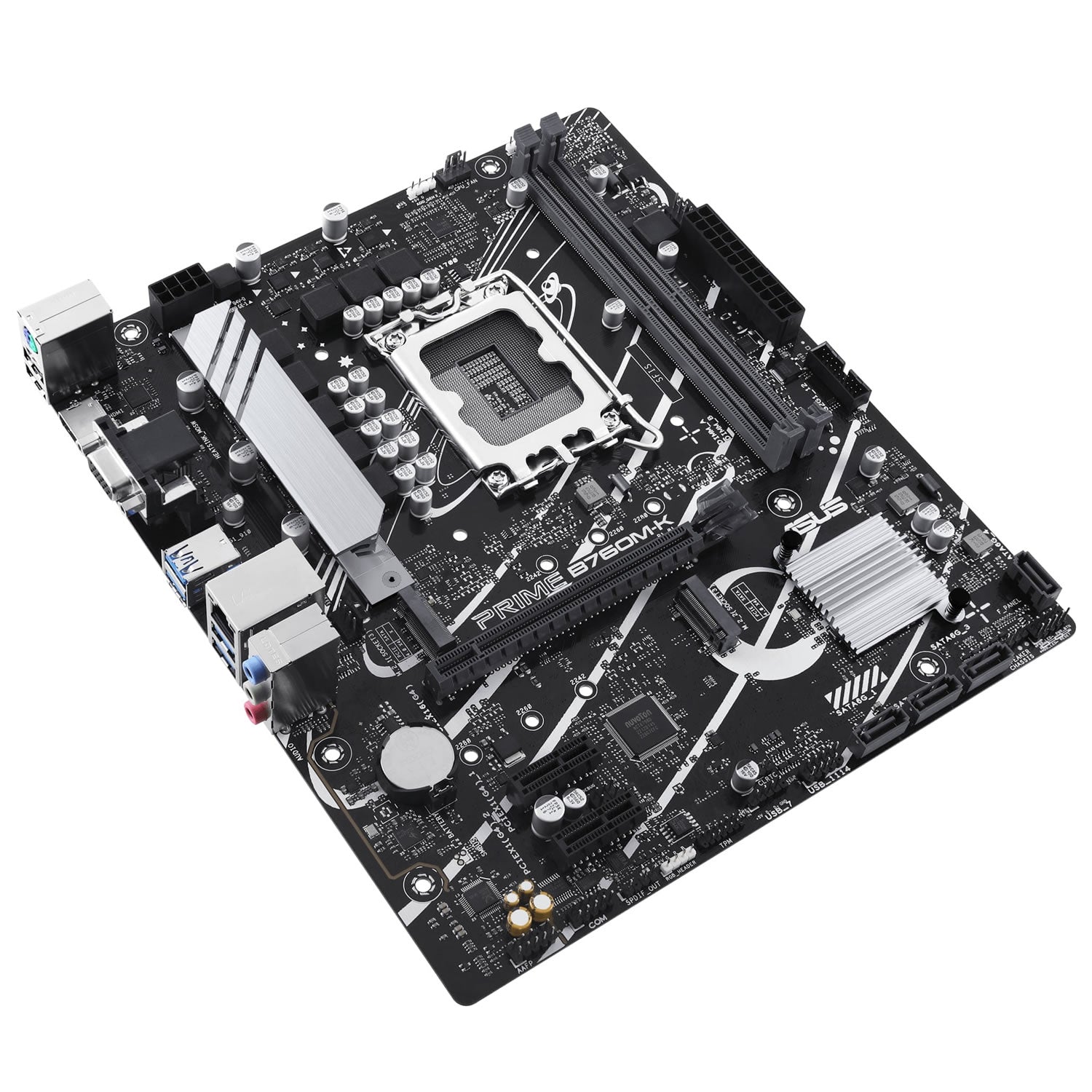

ASUS PRIME B760M-K Intel® B760 LGA 1700 mATX motherboard

Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
Ultrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 3.2 Gen 1 support
Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Aura Sync LightingRGB : Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

LGA1700 Socket Compatibility – Supports 12th & 13th Gen Intel® Core™, Pentium® Gold, and Celeron® processors.
PCIe 4.0 Ready – Unlocks faster data transfer rates for next-gen GPUs and storage solutions.
Dual M.2 Slots – Accommodates up to two NVMe SSDs for rapid boot times and data access.
DDR4 Memory Support – Supports up to 64GB of DDR4 RAM, overclockable to 5333 MHz (OC).
2.5Gb Ethernet – High-speed LAN connectivity for lag-free online gaming and streaming.
USB 3.2 Gen 1 Ports – Fast data transfers and compatibility with a wide range of peripherals.
Fan Xpert 2+ – Intelligent cooling profiles ensure optimal thermal performance.
ASUS DIGI+ VRM – Industry-leading digital power control for stable power delivery.
ASUS LANGuard & Overvoltage Protection – Enhanced durability with hardware-level safeguards.
ASUS Armoury Crate – Unified software for system tuning, RGB control, and driver updates.
Aura Sync Compatibility – Customise and synchronise RGB lighting across compatible devices.

Intel® Socket LGA1700 for Intel® CoreTM 14th & 13th Gen Processors, Intel® CoreTM 12th Gen, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset: Intel® B760 Chipset

Memory:
2 x DIMM slots, Max. 96GB, DDR5

Graphics
1 x VGA port
1 x HDMITM port

Expansion Slots:
Intel® CoreTM Processors (14th & 13th & 12th Gen)
1 x PCIe 4.0 x16 slot
Intel® B760 Chipset
2 x PCIe 4.0 x1 slots

Storage:
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Ethernet:
1 x Realtek 2.5Gb Ethernet

USB:
Rear USB (Total 6 ports)
4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A）
Front USB (Total 5 ports)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports

Audio:
Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback

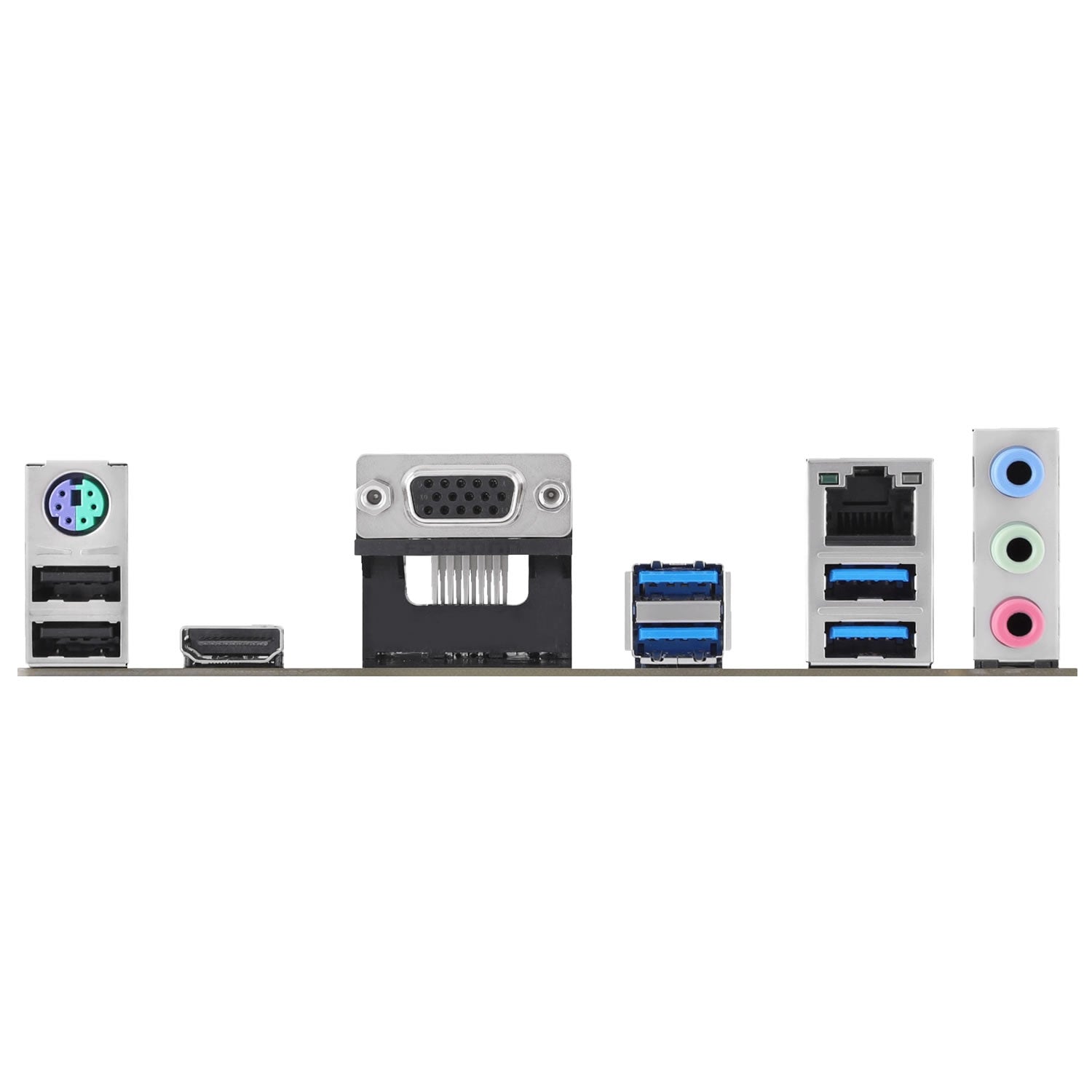

Back Panel I/O Ports:
4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x VGA port
1 x HDMITM port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port

Unleash next-gen performance with the ASUS PRIME B760M-K , a micro-ATX motherboard engineered for versatility, stability, and productivity. Built to support 12th and 13th Gen Intel® Core™ processors, this board is ideal for users seeking a reliable foundation for gaming rigs, creative workstations, or compact business PCs. The ASUS PRIME B760M-K blends essential functionality with premium-grade features, including PCIe 4.0 support, dual M.2 slots for ultra-fast NVMe storage, and ASUS-exclusive technologies designed to optimise performance and cooling. Targeted at users who demand more from their motherboard without exceeding budget constraints, the ASUS PRIME B760M-K features robust power delivery and customisable fan controls via Fan Xpert 2+. Whether you’re building a gaming setup or a multi-tasking productivity system, this board supports DDR4 memory up to 5333 MHz (OC), ensuring seamless multitasking and reduced load times. With a clean, professional aesthetic and compatibility with ASUS Aura Sync RGB lighting, the ASUS PRIME B760M-K delivers both visual flair and operational excellence. Enhanced connectivity options, including 2.5Gb Ethernet and rear USB 3.2 Gen 1 ports, round out this high-performance package, making it a future-ready solution for today’s computing demands.
