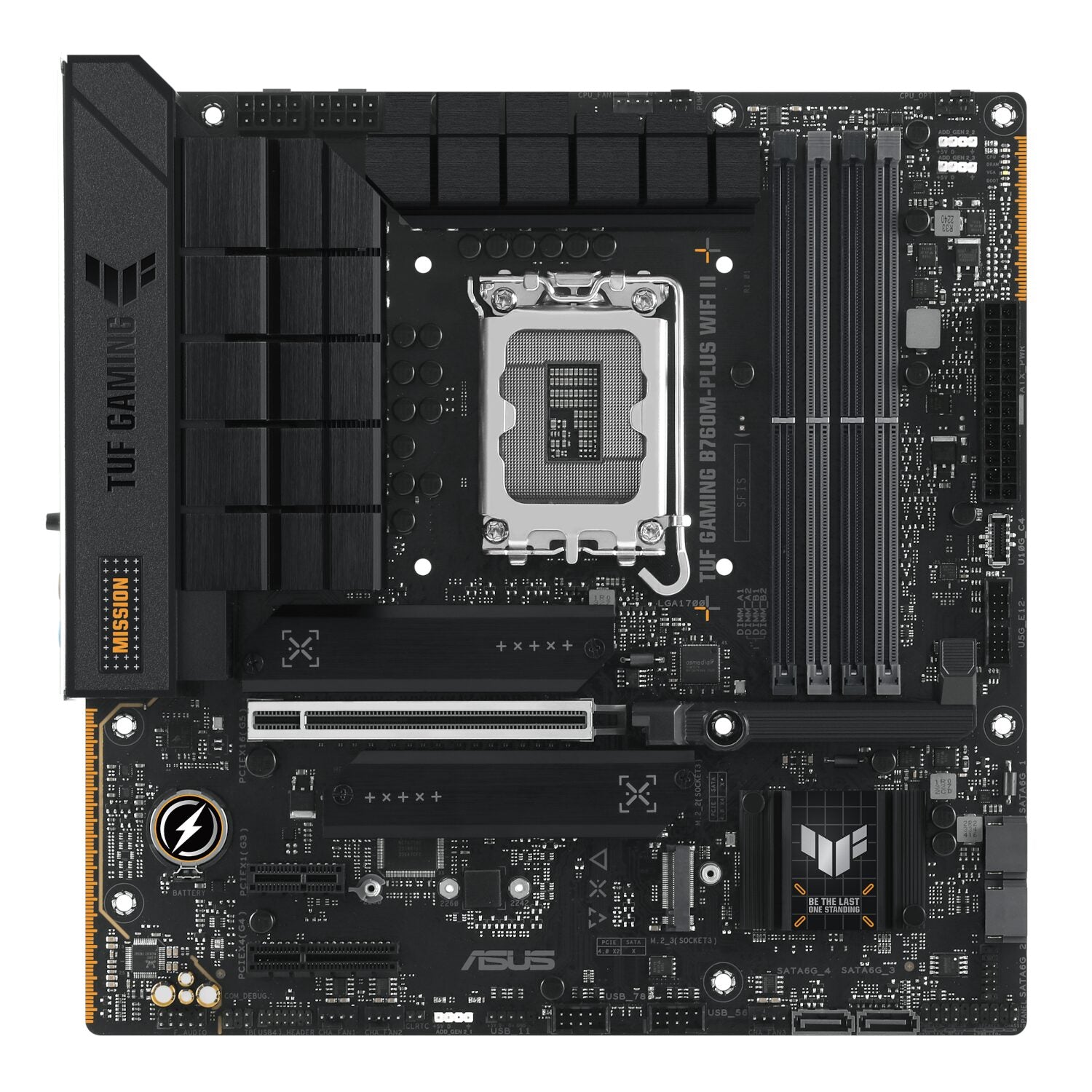

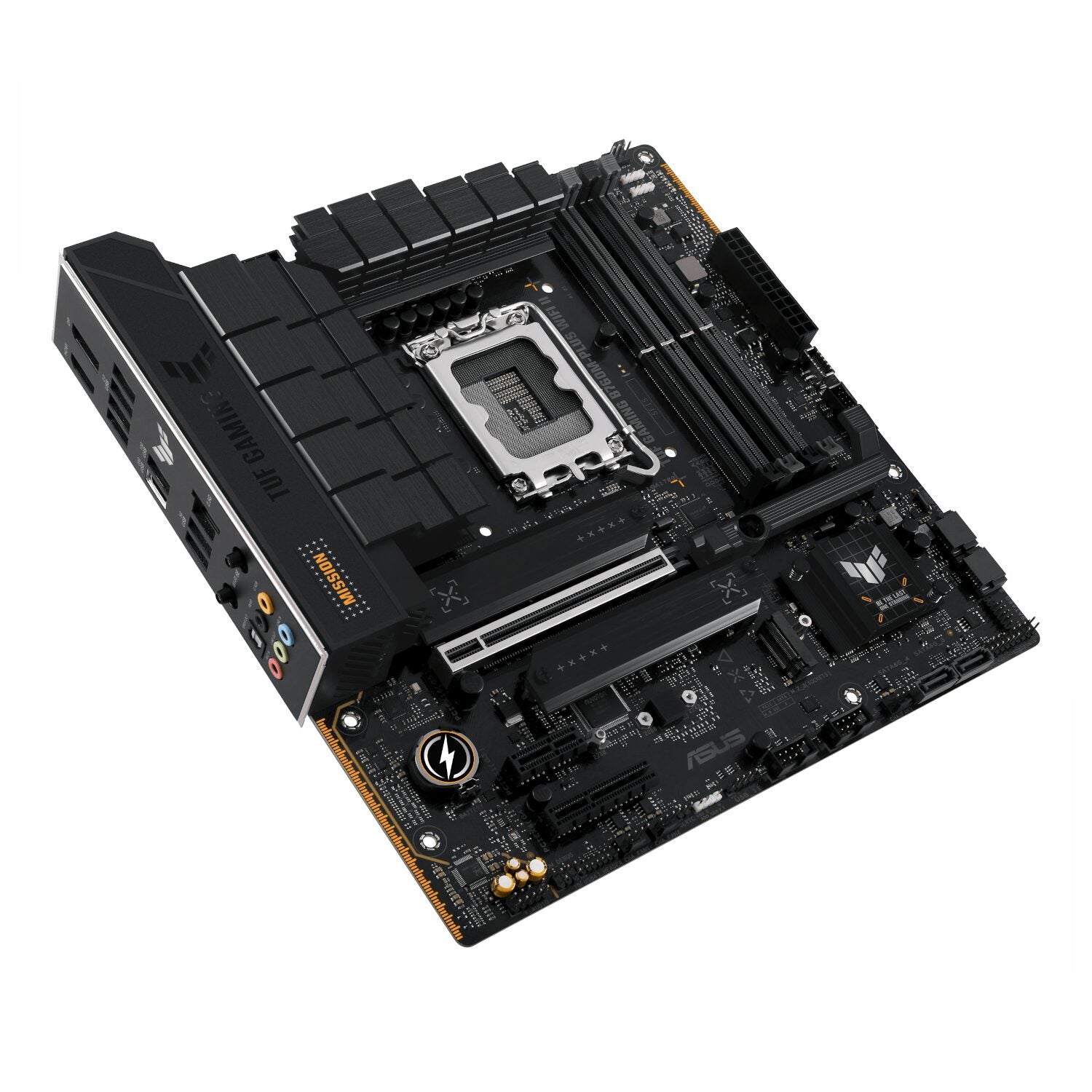

Asus TUF Gaming B760M-PLUS WIFI II - mATX Motherboard

R 5,099.00
Tax included. Shipping calculated at checkout.
SKU: TUFGAMINGB760M-PLUSWIFIII

This item is in stock at supplier.
Estimated arrival time: longer than usual

The Asus TUF Gaming B760M-PLUS WIFI II is a robust micro-ATX Motherboard that delivers exceptional durability, advanced performance, and rock-solid stability for 14th,13th and 12th Gen Intel® Core™ processors. Engineered with military-grade components and TUF-tested reliability, it caters to competitive gamers, PC builders, and performance-driven users seeking a balance between next-gen features and dependable construction.


At its core, the Asus TUF Gaming B760M-PLUS Motherboard features a 12+1 DrMOS power stage VRM architecture, enlarged VRM heatsinks, and a six-layer PCB design to ensure stable power delivery under high-load conditions. It supports DDR5 memory for faster data throughput, lower power consumption, and superior multitasking capabilities. PCIe® 5.0 support unlocks future-ready bandwidth for the latest GPUs, while dual PCIe 4.0 M.2 slots with M.2 Q-Latch simplify high-speed SSD installation.


Seamless connectivity is a cornerstone with integrated Wi-Fi 6E ensuring low-latency wireless networking across the 6 GHz spectrum, while the Intel® 2.5 Gb Ethernet port offers ultra-fast wired connections. Comprehensive cooling controls include hybrid fan headers, AI-powered Fan Xpert 2+ software, and precision thermal monitoring to maintain optimal system performance.


Built for DIY ease, it includes a pre-mounted I/O shield, Q-LED diagnostic indicators, and ASUS SafeSlot Core+ for reinforced GPU retention. The rugged design aesthetic is complemented by support for ASUS Aura Sync RGB lighting, allowing users to personalise builds with unified lighting control. Whether you’re building a compact gaming rig or a high-efficiency workstation, the Asus TUF Gaming B760M-PLUS WIFI II - mATX Motherboard delivers a future-proof platform tailored for speed, stability, and endurance.


FEATURES:



  • Intel® LGA1700 socket supports 14h & 13th Gen Intel® Core™, 12th Core, Pentium® Gold, and Celeron® processors

  • 12+1 DrMOS power stages and durable components ensure reliable, stable performance for demanding workloads.

  • DDR5 memory supports advanced multitasking and gaming responsiveness

  • Next-gen PCIe® 5.0 support provides ultra-high bandwidth for the latest GPUs, enhancing visual performance and data throughput

  • Dual PCIe 4.0 M.2 slots support NVMe SSDs for ultra-fast game and application loading times

  • Wi-Fi 6E connectivity delivers high-speed, low-latency wireless networking across the 6 GHz band

  • Intel® 2.5Gb Ethernet provides high-speed wired networking ideal for streaming, competitive gaming, and heavy data transfers

  • Enlarged VRM heatsinks, hybrid fan headers, and Fan Xpert 2+ software maintain thermal efficiency under load

  • Military-grade components and six-layer PCB ensure long-term reliability and enhanced power integrity

  • DIY-friendly design includes pre-mounted I/O shield, M.2 Q-Latch, SafeSlot Core+, and Q-LED indicators

  • ASUS Aura Sync RGB support offers customisable lighting synchronisation with compatible components

  • Armoury Crate centralised software for performance tuning, RGB control, and real-time system monitoring


SPECIFICATIONS:



  • CPU:

  • Chipset: Intel® B760 Chipset

  • CPU Compatibility: Supports Intel® 14th,13th & 12th Gen Core™, Pentium® Gold and Celeron® Processors

  • CPU Socket: LGA1700

  • Memory Support:

    • 4 x DIMM slots, up to 192GB total

    • DDR5 7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz

    • Dual-channel architecture

    • Intel® Extreme Memory Profile (XMP) support



  • Graphics:

    • 1 x DisplayPort

    • 1 x HDMI™port



  • Expansion Slots:

    • Intel® CoreTM Processors (14th & 13th & 12th Gen)*

      • 1 x PCIe 5.0 x16 slot



    • Intel® B760 Chipset

      • 1 x PCIe 4.0 x4 slot

      • 1 x PCIe 3.0 x1 slot





  • Storage:

  • Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

  • Intel® CoreTM Processors (14th & 13th & 12th Gen)

    • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)



  • Intel® B760 Chipset

    • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

    • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)

    • 4 x SATA 6Gb/s ports



  • Ethernet: 1 x Realtek 2.5Gb ethernet TUF LANGuard

  • Wireless & Bluetooth:

    • 2x2 Wi-Fi 6E (802.11ax)

    • Bluetooth® v5.3 (2.4/5/6GHz)



  • USB:

    • Rear USB (Total 8 ports)

      • 1 x USB 20Gbps port (1 x USB Type-C®)

      • 1 x USB 10Gbps port (1 x Type-A)

      • 2 x USB 5Gbps ports (2 x Type-A)

      • 4 x USB 2.0 ports (4 x Type-A)



    • Front USB (Total 8 ports)

      • 1 x USB 10Gbps connector (supports USB Type-C®)

      • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

      • 3 x USB 2.0 headers support 5 additional USB 2.0 ports





  • Audio:

    • Realtek 7.1 Surround Sound High Definition Audio CODEC

      • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

      • Supports up to 24-bit/192 kHz playback



    • Audio Features

      • Audio Shielding

      • Rear optical S/PDIF out port

      • Premium audio capacitors

      • Dedicated audio PCB layers

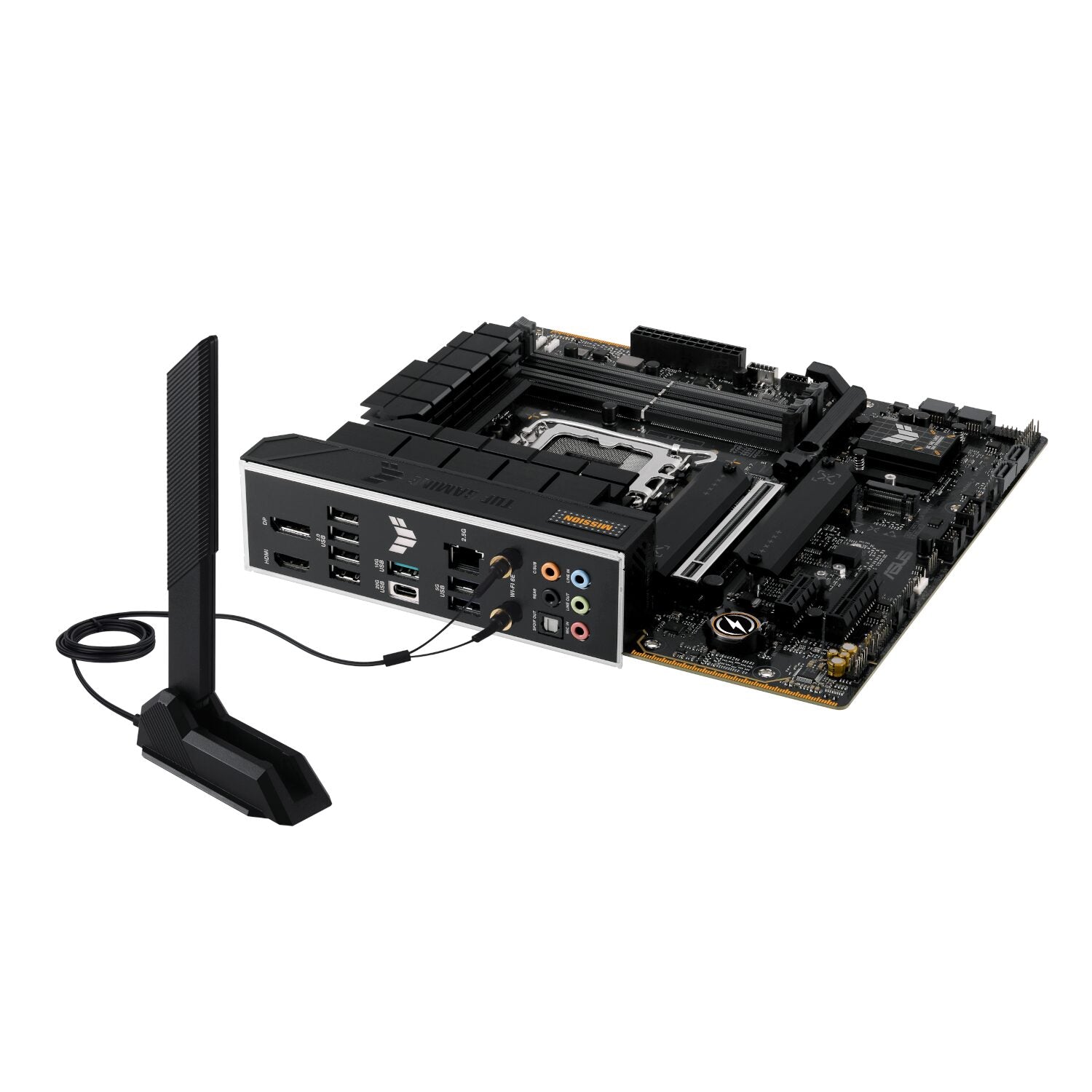

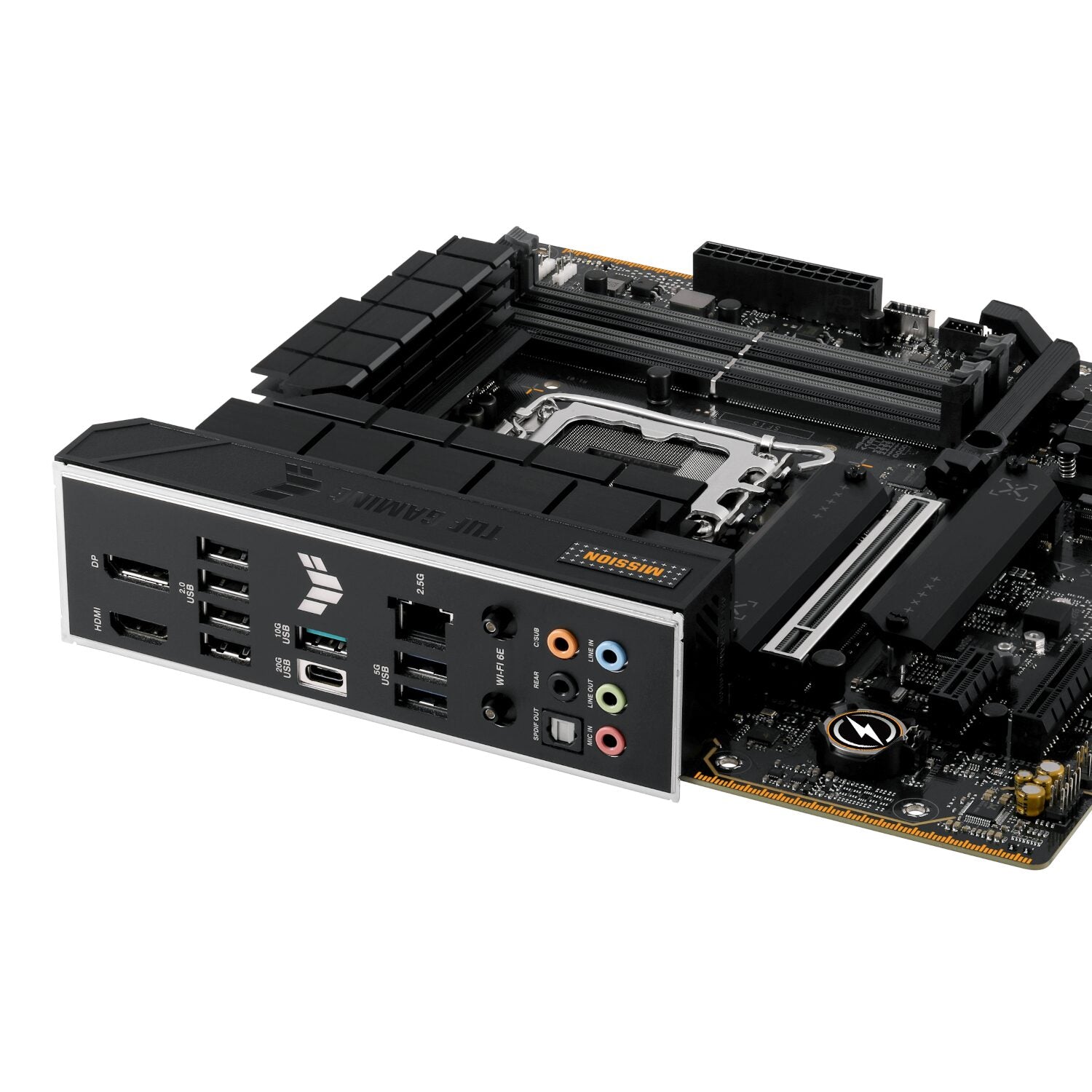

  • Back Panel I/O Ports:

    • 1 x USB 20Gbps port (1 x USB Type-C®)

    • 1 x USB 10Gbps port (1 x Type-A)

    • 2 x USB 5Gbps ports (2 x Type-A)

    • 4 x USB 2.0 ports (4 x Type-A)

    • 1 x DisplayPort

    • 1 x HDMI™ port

    • 1 x Wi-Fi Module

    • 1 x Realtek 2.5Gb Ethernet port

    • 5 x Audio jacks

    • 1 x Optical S/PDIF out port



  • Internal I/O Connectors:

    • I/O Connectors  Fan and Cooling related

      • 1 x 4-pin CPU Fan header

      • 1 x 4-pin CPU OPT Fan header

      • 1 x 4-pin AIO Pump header

      • 3 x 4-pin Chassis Fan headers



    • Power related

      • 1 x 24-pin Main Power connector

      • 2 x 8-pin +12V Power connectors



    • Storage related

      • 3 x M.2 slots (Key M)

      • 4 x SATA 6Gb/s ports



    • USB

      • 1 x USB 10Gbps connector (supports USB Type-C® )

      • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

      • 3 x USB 2.0 headers support 5 additional USB 2.0 ports



    • Miscellaneous

      • 3 x Addressable Gen 2 headers

      • 1 x Clear CMOS header

      • 1 x Front Panel Audio header (AAFP)

      • 1 x 20-3 pin System Panel header with Chassis intrude function

      • 1 x Thunderbolt™ (USB4®) header





  • Special Features:

    • ASUS TUF PROTECTION

      • DIGI+ VRM (- Digital power design with DrMOS)

      • ESD Guards

      • TUF LANGuard

      • Overvoltage Protection

      • SafeSlot Core+

      • Stainless-Steel Back I/O



    • ASUS Q-Design

      • M.2 Q-Latch

      • PCIe Slot Q-Release

      • Q-Antenna

      • Q-DIMM

      • Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot     Device [yellow green])



    • ASUS Thermal Solution

      • M.2 heatsinks

      • VRM heatsink design



    • ASUS EZ DIY

      • CPU Socket lever protector

      • ProCool

      • Pre-mounted I/O shield

      • SafeDIMM



    • AURA Sync

      • Addressable Gen 2 headers





  • Software Features:

    • ASUS Exclusive Software

    • Armoury Crate

      • AURA Creator

      • AURA Sync

      • Fan Xpert 2+

      • Power Saving

      • Two-Way AI Noise Cancellation



    • AI Suite 3

      • DIGI+ VRM

      • PC Cleaner



    • TUF GAMING CPU-Z

    • DTS Audio Processing

    • MyASUS

    • Norton 360 for Gamers (60 Days Free Trial)

    • WinRAR (40 Days Free Trial)

    • UEFI BIOS

    • ASUS EZ DIY

      • ASUS CrashFree BIOS 3

      • ASUS EZ Flash 3

      • ASUS UEFI BIOS EZ Mode





  • BIOS: 128 Mb Flash ROM, UEFI AMI BIOS

  • Manageability: WOL by PME, PXE

  • Operating System: Windows® 11, Windows® 10 64-bit

  • Form Factor:

  • Form Factor: mATX (micro-ATX)

    • Dimensions: (24.4 x 24.4 cm)




WHAT'S IN THE BOX:



  • Asus TUF Gaming B760M-PLUS WIFI II - mATX Motherboard x1

  • SATA 6Gb/s cables  x2

  • ASUS Q-Antenna x1

  • M.2 Rubber Package x1

  • TUF Gaming sticker x1

  • Screw packages for M.2 SSD x2

  • TUF Certification card x1

  • User guide x1
