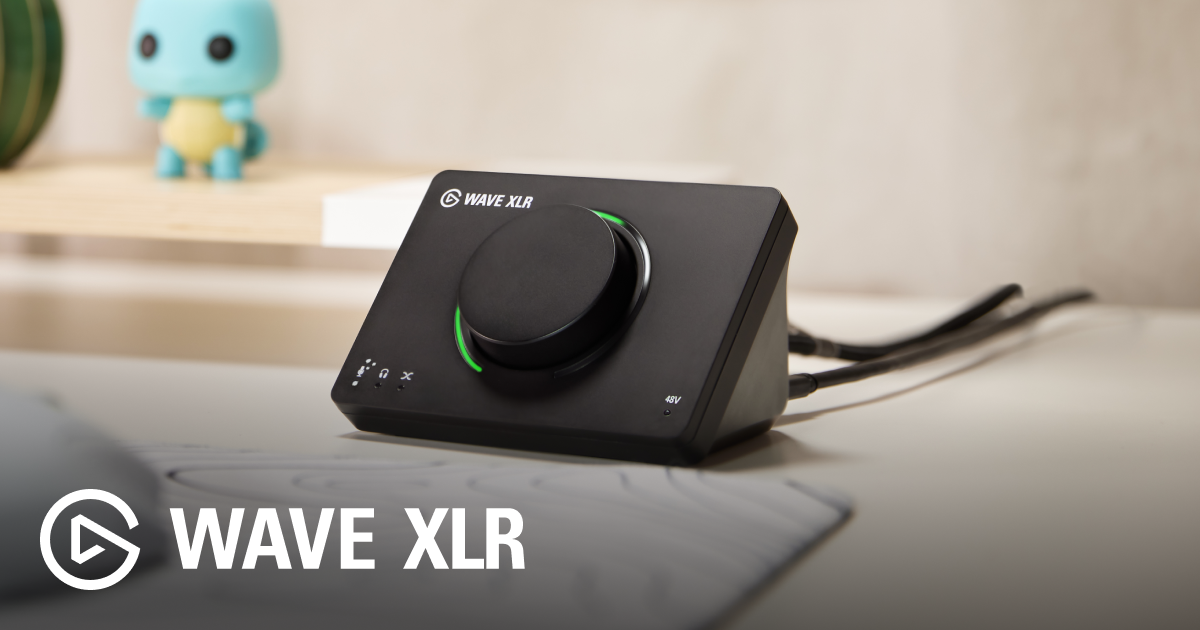

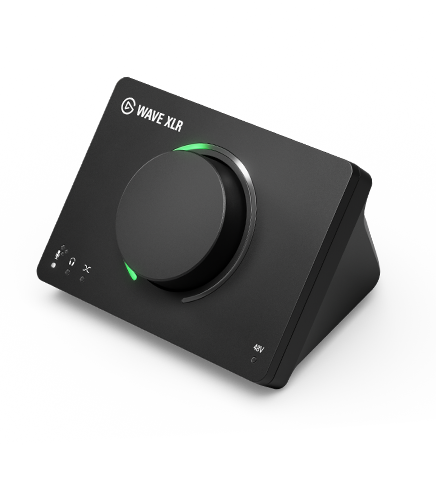

Elgato Wave XLR - Microphone Interface & Digital Mixer

Wave XLR MK.2 is a powerful mic interface with built-in DSP effects, Wave Link integration, and Stream Deck control. It brings your analog mic into a fully digital workflow that's fast, flexible, and built for modern audio.

Wave XLR is a USB audio interface and DSP mixer for XLR microphones. 80dB gain, onboard effects, touch to mute, LED feedback, and Stream Deck integration for creators and pros.

XLR microphones made simple with 80 dB gain, onboard DSP effects, low-latency monitoring, and Stream Deck integration in a compact USB interface.

Wave XLR MK.2 works with any XLR microphone, from gain-hungry dynamics to studio condensers, with 80 dB of clean gain and 48V phantom power.

Key Features

• Mix and match audio gear from across the Wave ecosystem - the more you bundle, the more you save
• Comparing Wave XLR and Wave XLR MK.2. What Wave FX Processor adds, what's improved, and which one fits your setup
• Mix, route, and apply effects to all your audio with Wave Link 3.0. Free for Windows and macOS and works with any mic

Specifications

• Model: 10MAG9901
• Resolution: 24bit
• Sample Rate: 48kHz
• Frequency Response (Xlr Input): 20Hz - 20kHz
• Frequency Response (Headphones, 32 Ohm): 20Hz - 20kHz
• Dynamic Range Xlr Input: 135 dB
• Equivalent Input Noise (Ein), A-Weighted: -130 dB
• Maximum Input Level: 6 dBV
• Connectors: Microphone (XLR), Headphone (3.5 mm Jack, Stereo), Host I/O (USB-C)
• Power Consumption: 900 mA max
• Product Weight: 320 g / 11.3 oz
• Product Dimensions: 93 x 118 x 73 mm / 3.7 x 4.7 x 2.9 in (D x W x H)
• OS: Windows 11 (64-bit) or newer
• Connectivity: USB-C port
• Software: Wave Link (free download)
• Headphones (Wired): For zero/ultra-low latency monitoring
